Porsche > Diagrams > 993 (911) (1994-1998) > Engine >

Crankshaft / Connecting rod 924 1980 - 1985

Crankshaft / Connecting rod 924 1980 - 1985 - PORSCHE

Click the image numbers to view product info

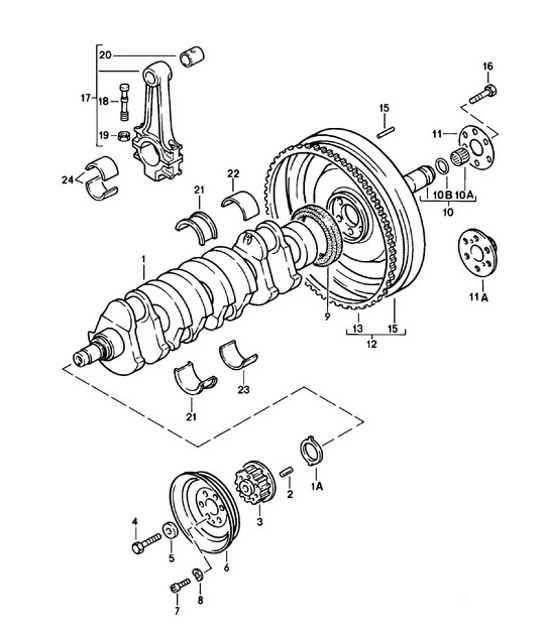

Diagram 102-000 Porsche 993 (911) (1994-1998) Engine SKU: 046105021A, crankshaft SKU: 046105177, driver SKU: N0232551, roll pin 4 x 12 SKU: 048105209, toothed belt pulley SKU: N90007401, hexagon-head bolt SKU: 048105235, washer SKU: 048105255A, v-belt pulley simple,SKU: 046105255B, v-belt pulley simple,SKU: 046105255F, v-belt pulley double,SKU: 477105255, v-belt pulley triple SKU: 90006701803, pan-head screw m8 x 25 SKU: N0122418, spring washer b8 x 15 SKU: 059103051D, sealing ring SKU: 047105169A, bearing sleeve with needle-roller bearing,SKU: 93110211102, deep-groove ball bearing SKU: 047105313, needle-roller bearing SKU: 047105311, shaft sealing ring 15 x 21 x 5/7 SKU: 046105175, centring washer SKU: 047105179, stop SKU: 046105269B, flywheel,SKU: 93110220505, flywheel only together with clutch plate 931.116.011.04,SKU: 93110220601, flywheel only together withclutch plate 931.116.011.04,SKU: 93110220603, flywheel only together with clutch plate 944.116.012.04 SKU: 046105275A, starter ring SKU: N0132101, straight pin 6 m 6 x 16 SKU: N0401101, hexagon-head boltm 12 x 1,5 x 22,SKU: 90008302108, hexagon-head boltm 12 x 1,5 x 20 only together with flywheel 931.102.205.05 / 931.102.206.01,SKU: 93110220200, hexagon-head boltm 12 x 1,5 x 18 only together with flywheel 931.102.206.03 SKU: 046198401, connecting rod 1 set SKU: PCG10542500, connecting rod bolt SKU: 99903404001, hexagon nut SKU: 059105431, connecting rod bush SKU: PCG10550100, crankshaft bearing thrust bearing,SKU: PCG10550700, crankshaft bearing thrust bearing undersize 0,25 mm,SKU: 046105513, crankshaft bearing thrust bearing undersize 0,50 mm,SKU: 046105519, crankshaft bearing thrust bearing undersize 0,75 mm SKU: PCG10550100, crankshaft bearing thrust bearing,SKU: PCG10550700, crankshaft bearing thrust bearing undersize 0,25 mm,SKU: 046105513, crankshaft bearing thrust bearing undersize 0,50 mm,SKU: 046105519, crankshaft bearing thrust bearing undersize 0,75 mm SKU: PCG10556100, crankshaft bearing numbers 1,2,4,5,SKU: PCG10556700, crankshaft bearing numbers 1,2,4,5 undersize 0.25 mm,SKU: 046105573, crankshaft bearing numbers 1,2,4,5 undersize 0.50 mm,SKU: 046105579, crankshaft bearing numbers 1,2,4,5 undersize 0,75 mm SKU: PCG10559100, crankshaft bearing numbers 1,2,4,5,SKU: PCG10559700, crankshaft bearing numbers 1,2,4,5 undersize 0.25 mm,SKU: 046105603, crankshaft bearing nr. 1, 2, 4, 5 undersize 0.50 mm,SKU: 046105609, crankshaft bearing nr. 1, 2, 4, 5 undersize 0,75 mm SKU: 046105701, connecting-rod bearing,SKU: 046105707, connecting-rod bearing undersize 0.25 mm,SKU: 046105713, connecting-rod bearing undersize 0.50 mm,SKU: 046105719, connecting-rod bearing undersize 0,75 mm 102-000
