Electronic Throttle Conversion Kit with GT3 Manifold. Porsche 911 turbo  ❭  AMS905013

GT3 manifold electronic throttle conversion kit by Adapt Motorsport for air-cooled Porsche 911 turbo installations with two-bolt cylinder heads.

Fits

• Porsche 911 1975-1977 3.0L Turbo (930)
• Porsche 911 1978-1989 3.3L Turbo (930)

What This Product Does

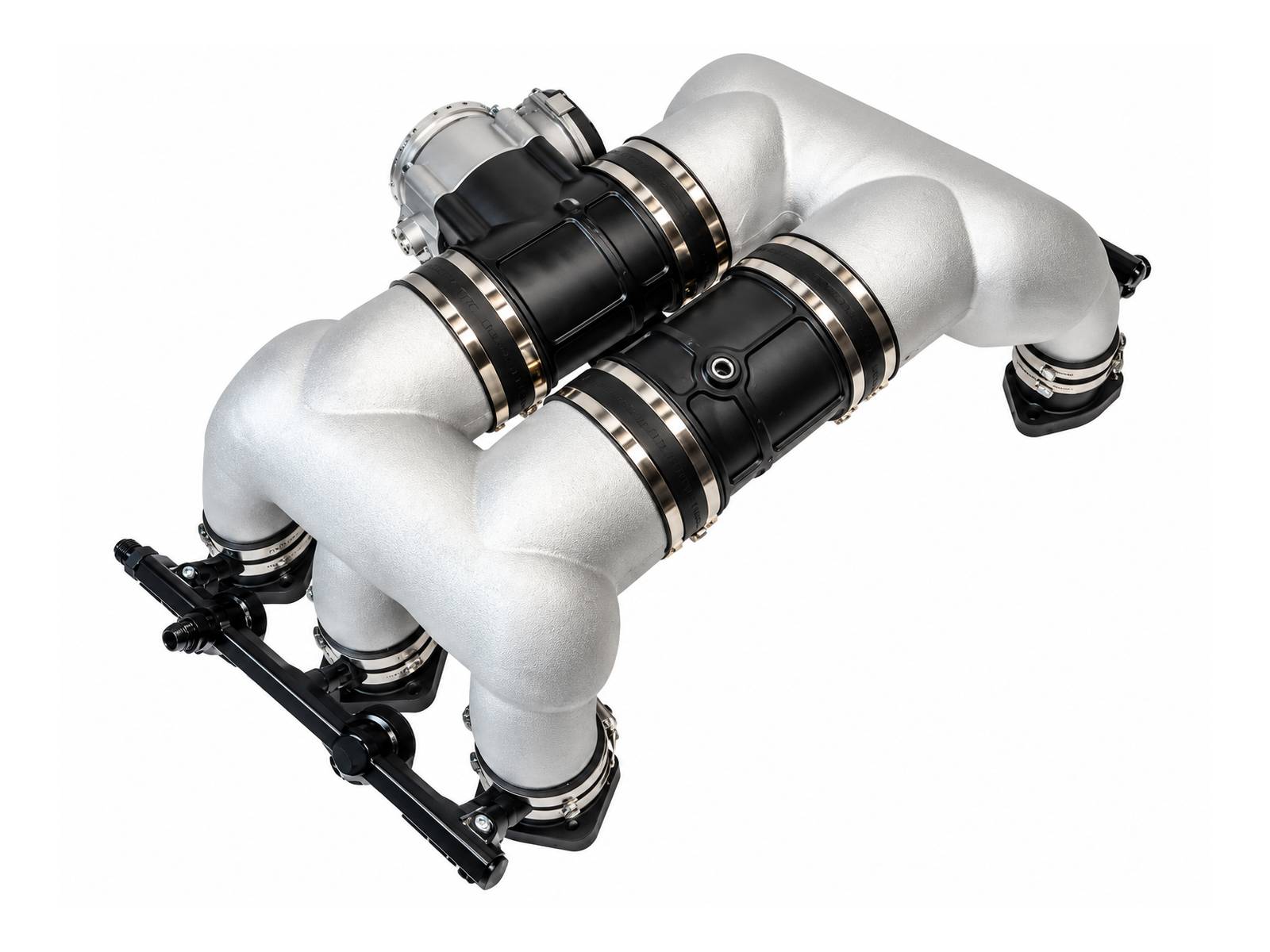

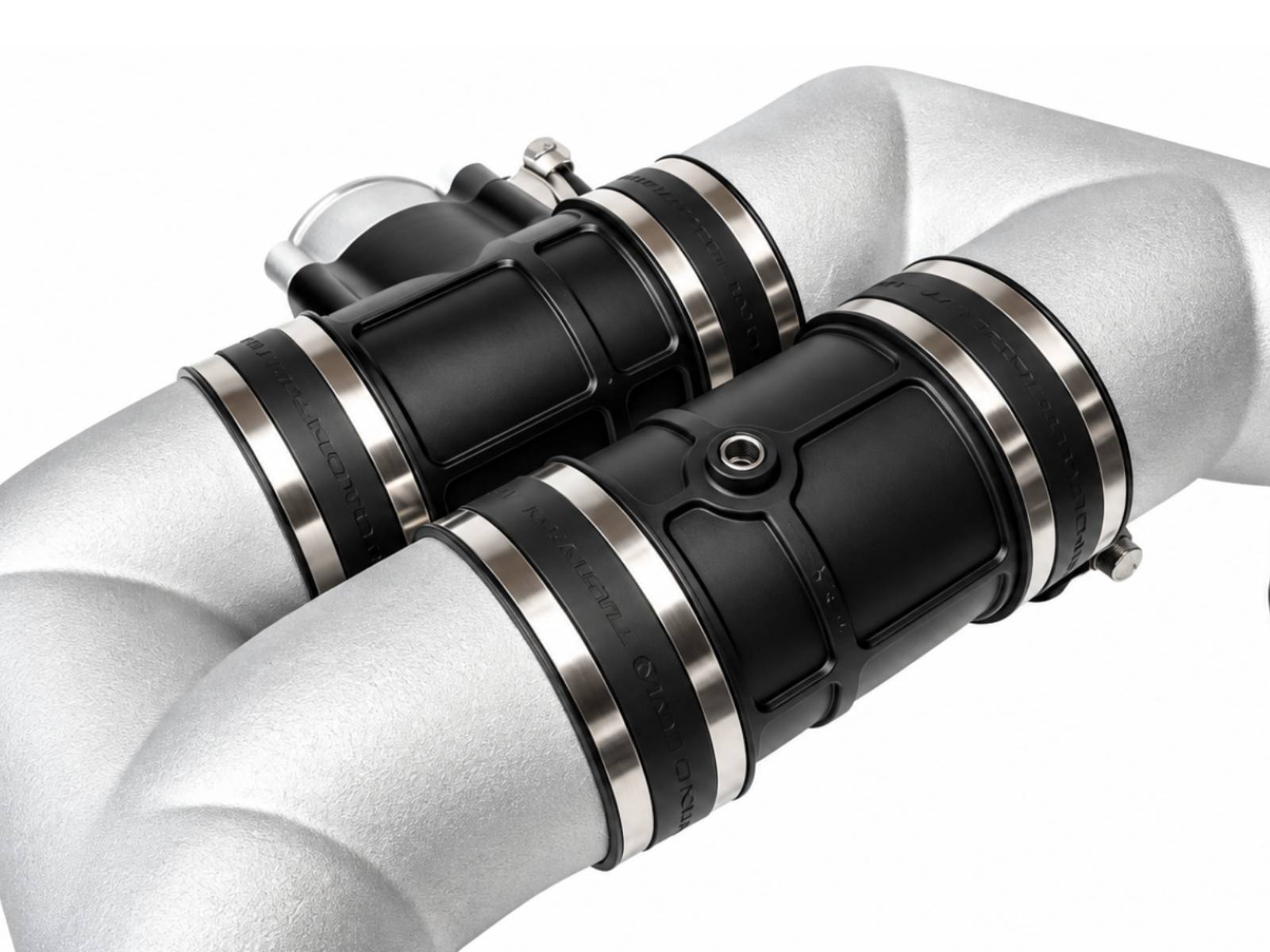

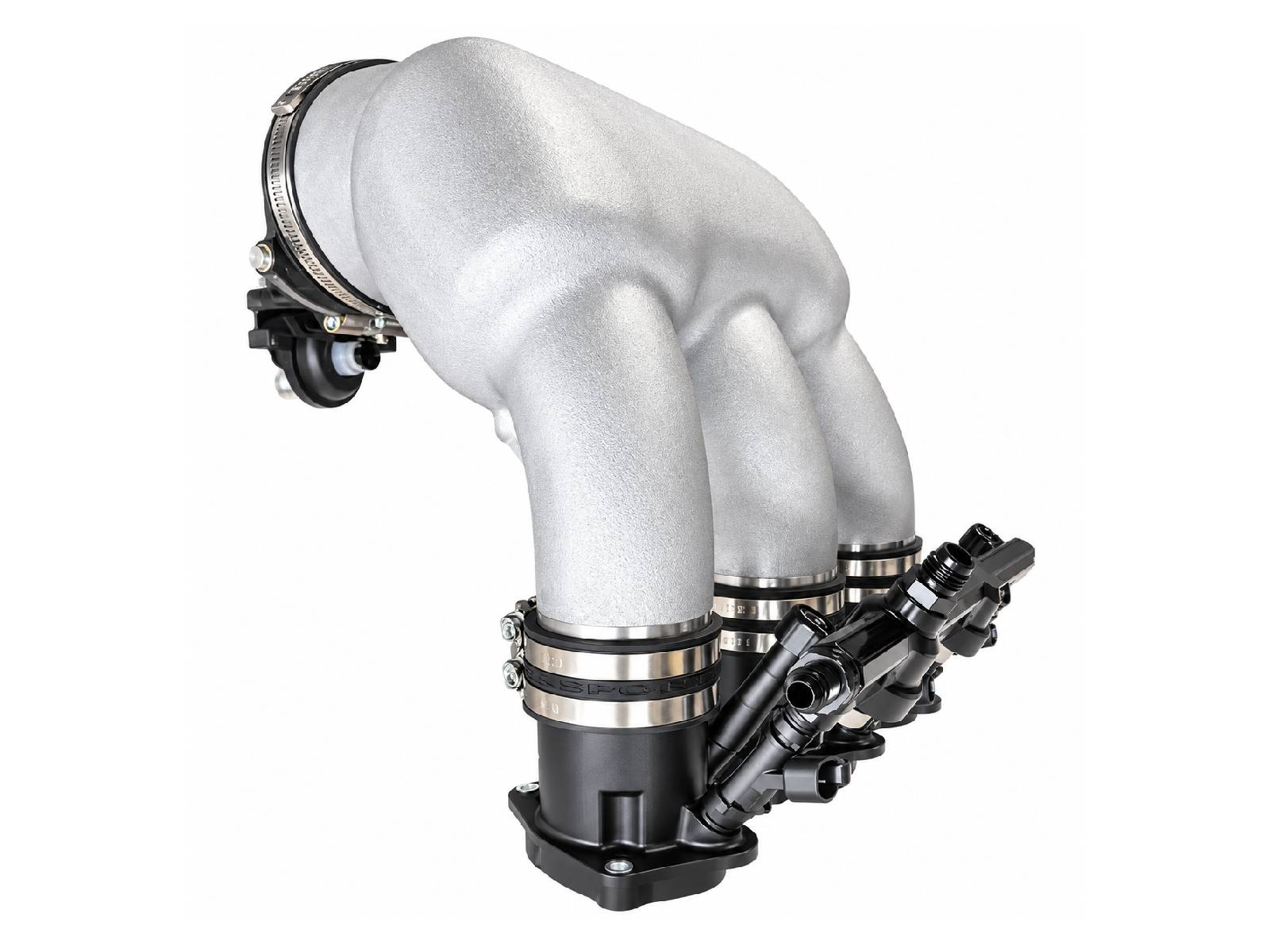

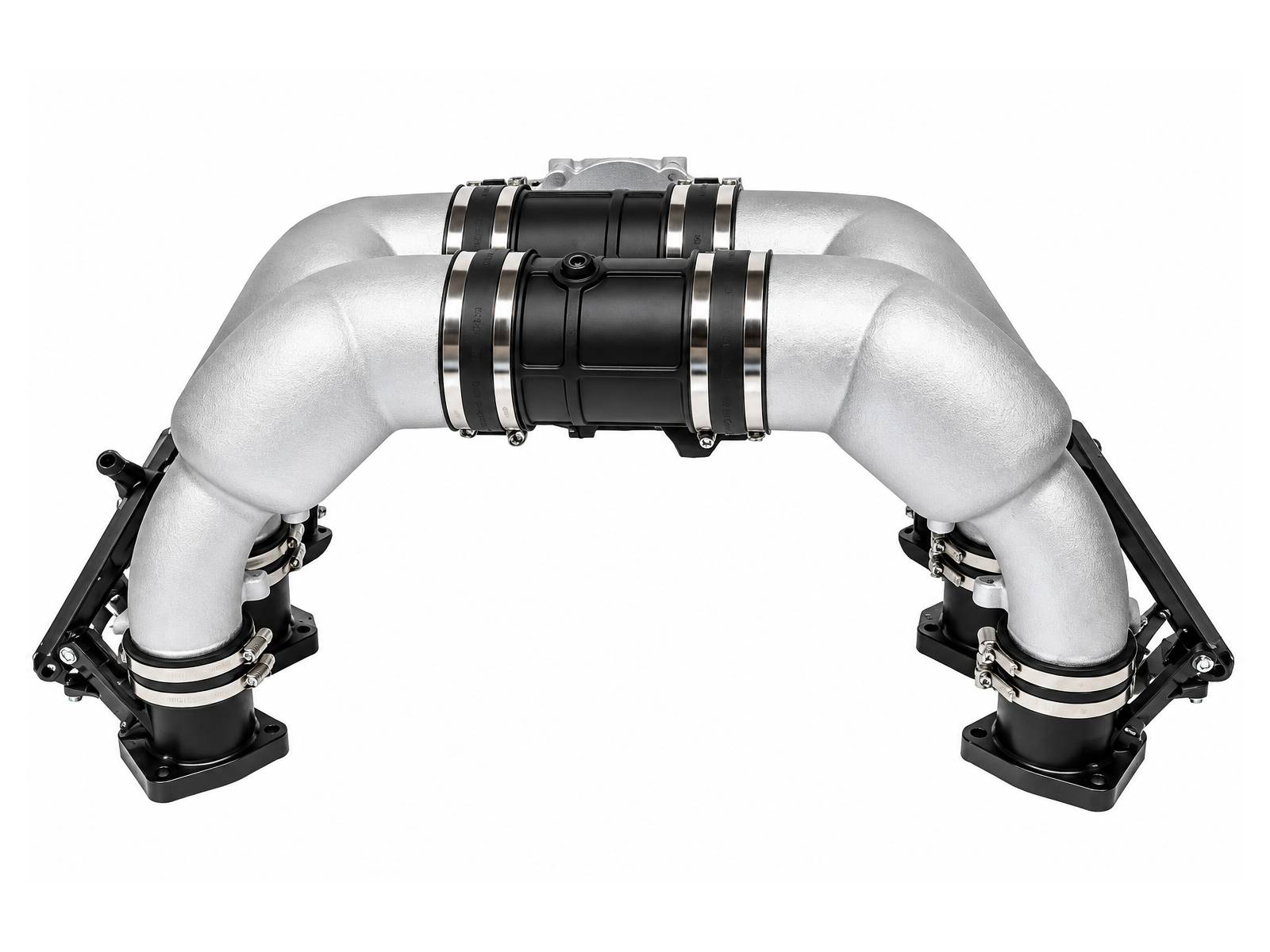

This conversion uses large-volume 996 GT3-style intake manifolds as the basis of an electronic throttle intake system for classic air-cooled Porsche engines. Adapt Motorsport offers purpose-designed cast-aluminium manifolds that account for the shorter cylinder spacing of these engines, together with the fuel delivery, vacuum and resonance-flap components required to form the intake assembly.

Functions

• Controls intake airflow through a Bosch 82mm electronic throttle body
• Adapts GT3-style intake hardware to compatible two-bolt turbo cylinder heads
• Provides fuel rails and spacers for long, medium or short EV14-style injectors
• Operates the resonance flap through a vacuum canister, solenoid and check valve
• Provides vacuum connections for the brake booster, idle-air bypass and other systems
• Measures intake temperature and manifold pressure using a Bosch T-MAP sensor

Technical Details

• 996 GT3-style intake manifold port diameter: 49mm
• Two-bolt intake adapters: 40mm or 42mm ports for 3.0ltr and 3.3ltr turbo engines
• Bosch electronic throttle body diameter: 82mm
• Standard Bosch T-MAP sensor: 1.15 bar; a 3.0-bar option is also offered
• Adapt Motorsport manifolds are cast aluminium; the resonance flap and intake T-piece are CNC-machined and black anodised

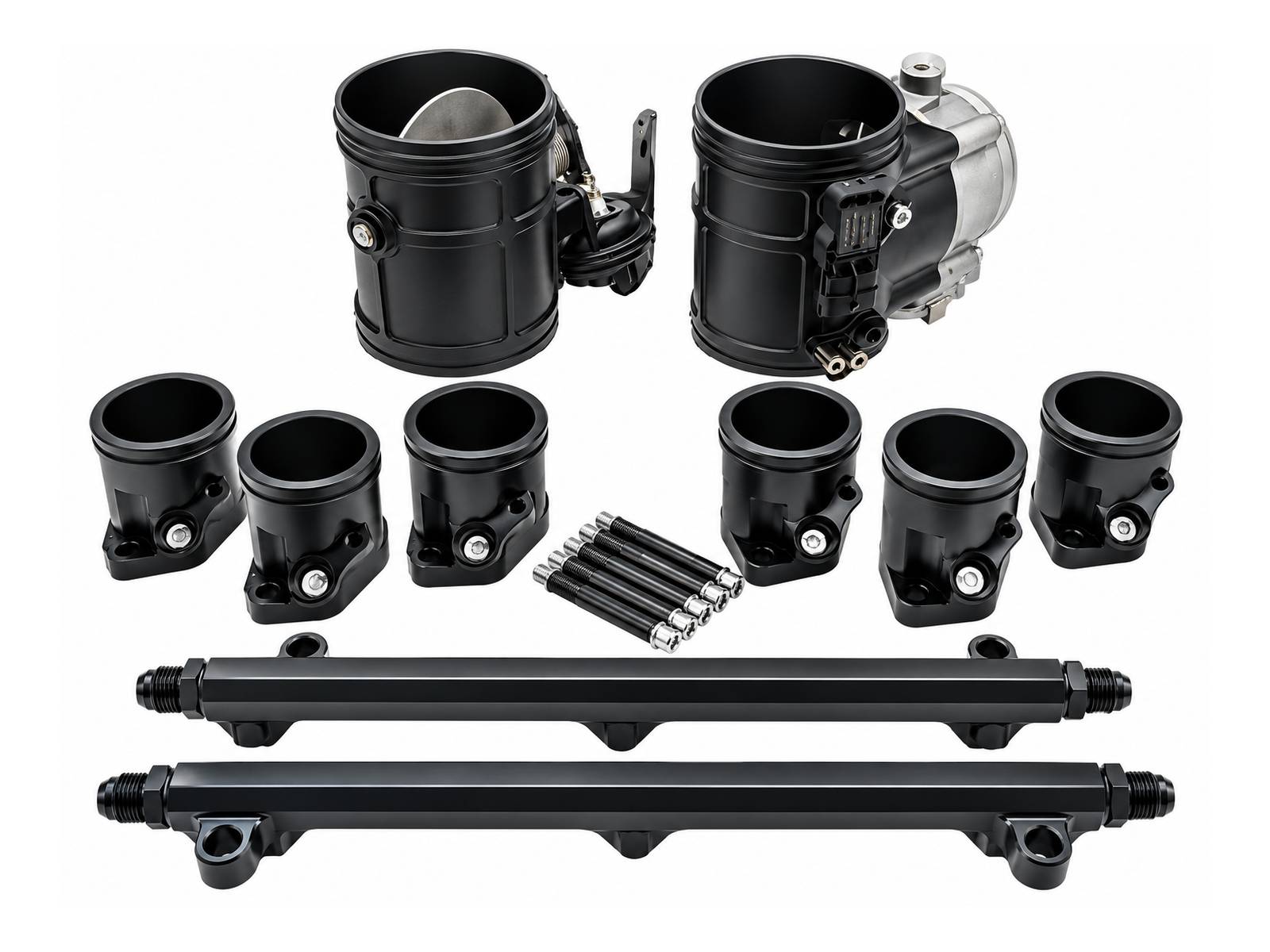

Base Kit Contents

• Adapt Motorsport high-flow intake T-piece with vacuum and T-MAP sensor ports
• Fuel rail kit with fittings

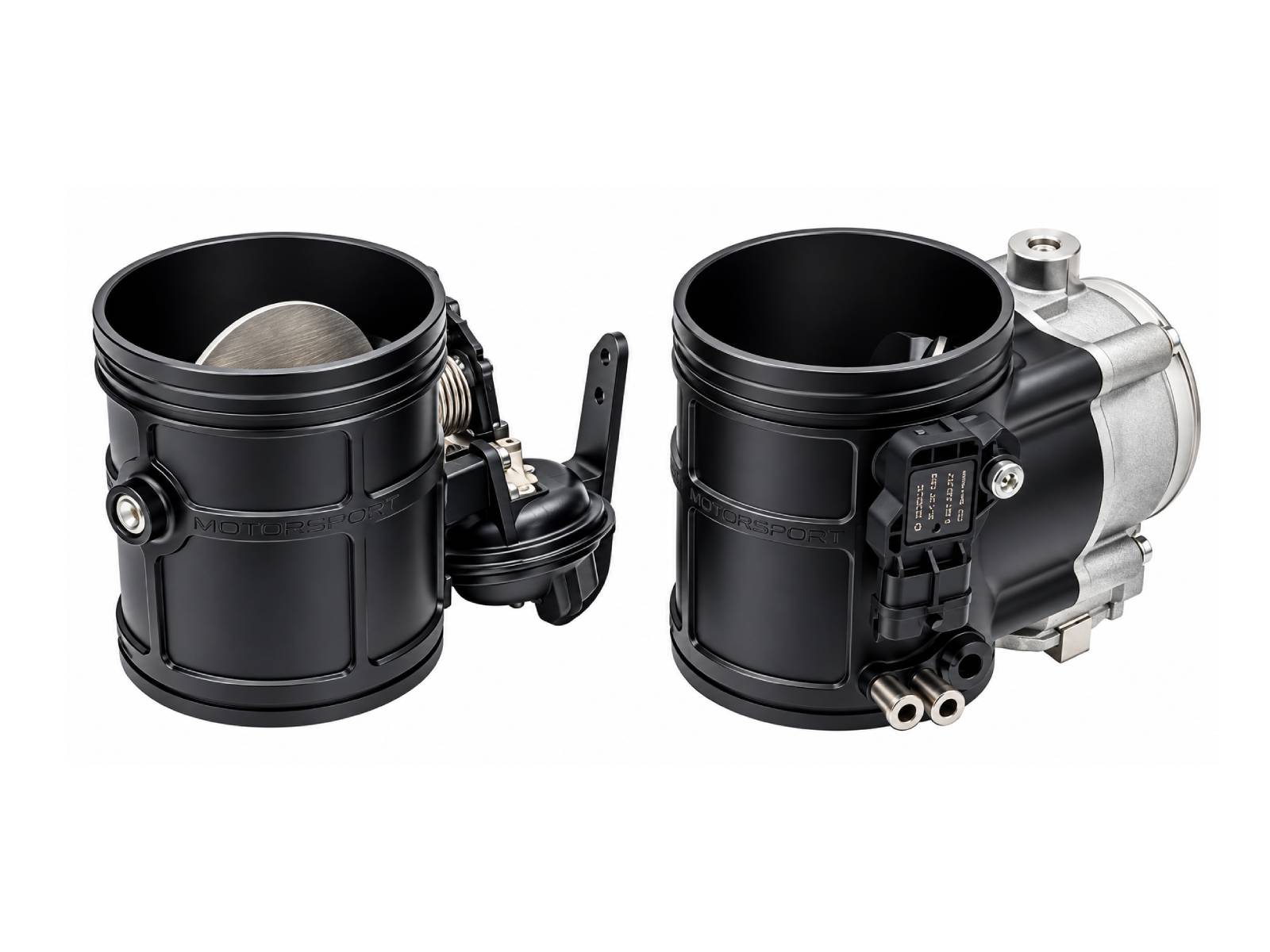

• Bosch 82mm electronic throttle body and connector kit

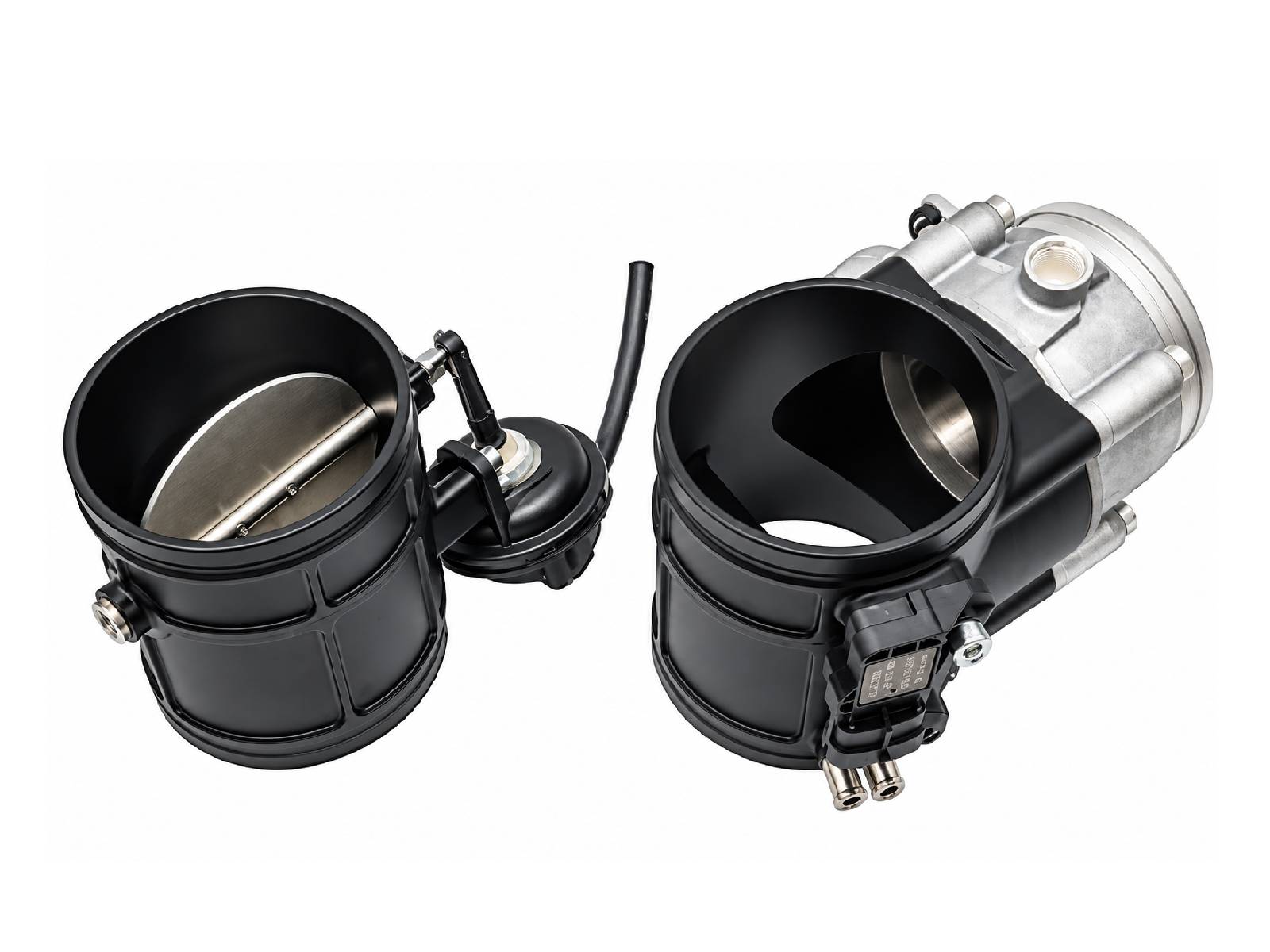

• CNC-machined resonance-flap kit with sealed roller bearings
• Bosch 1.15-bar temperature and pressure sensor with connector kit

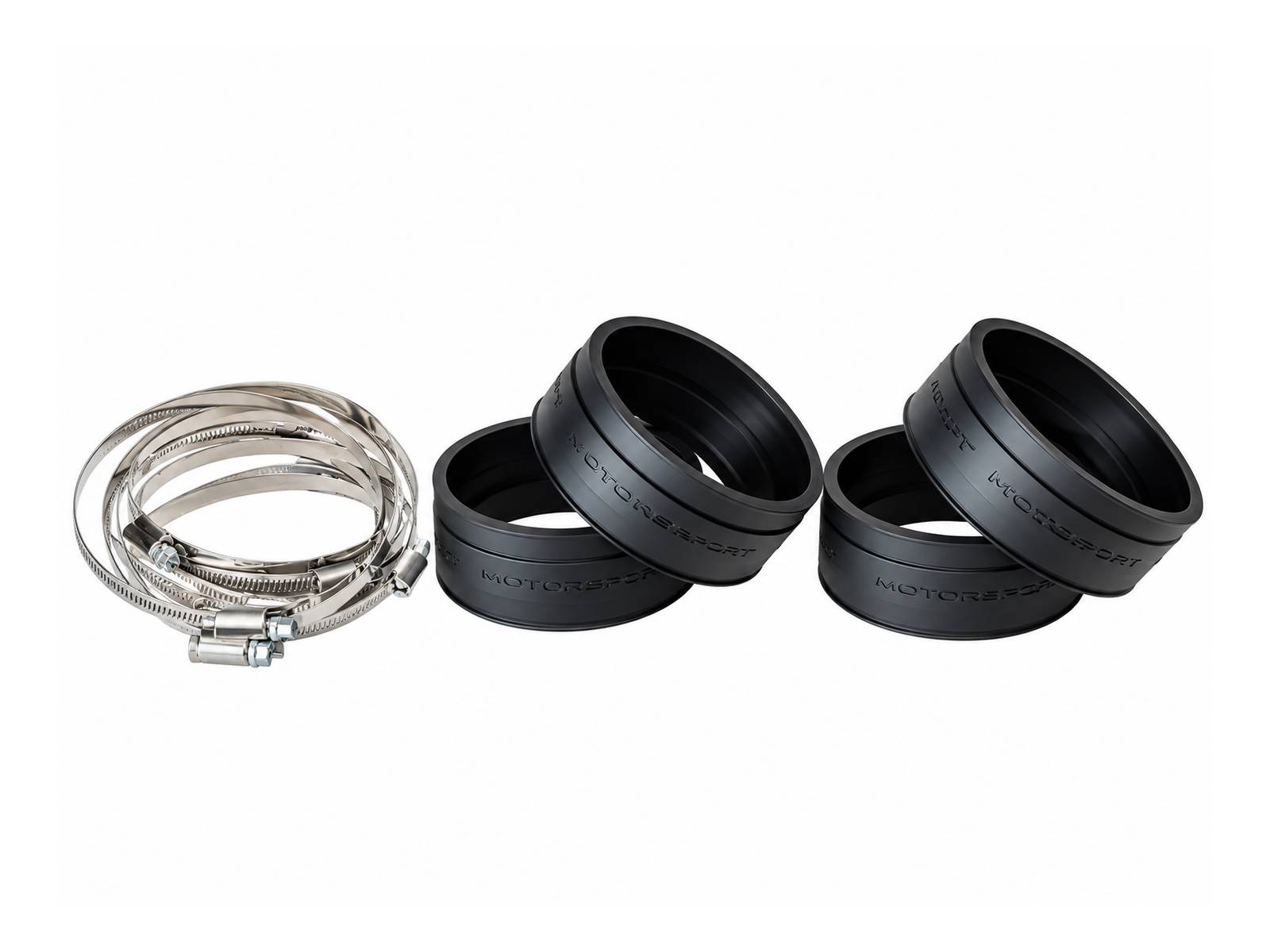

• Throttle, resonance-flap and intake-adapter sleeves with hose clamps

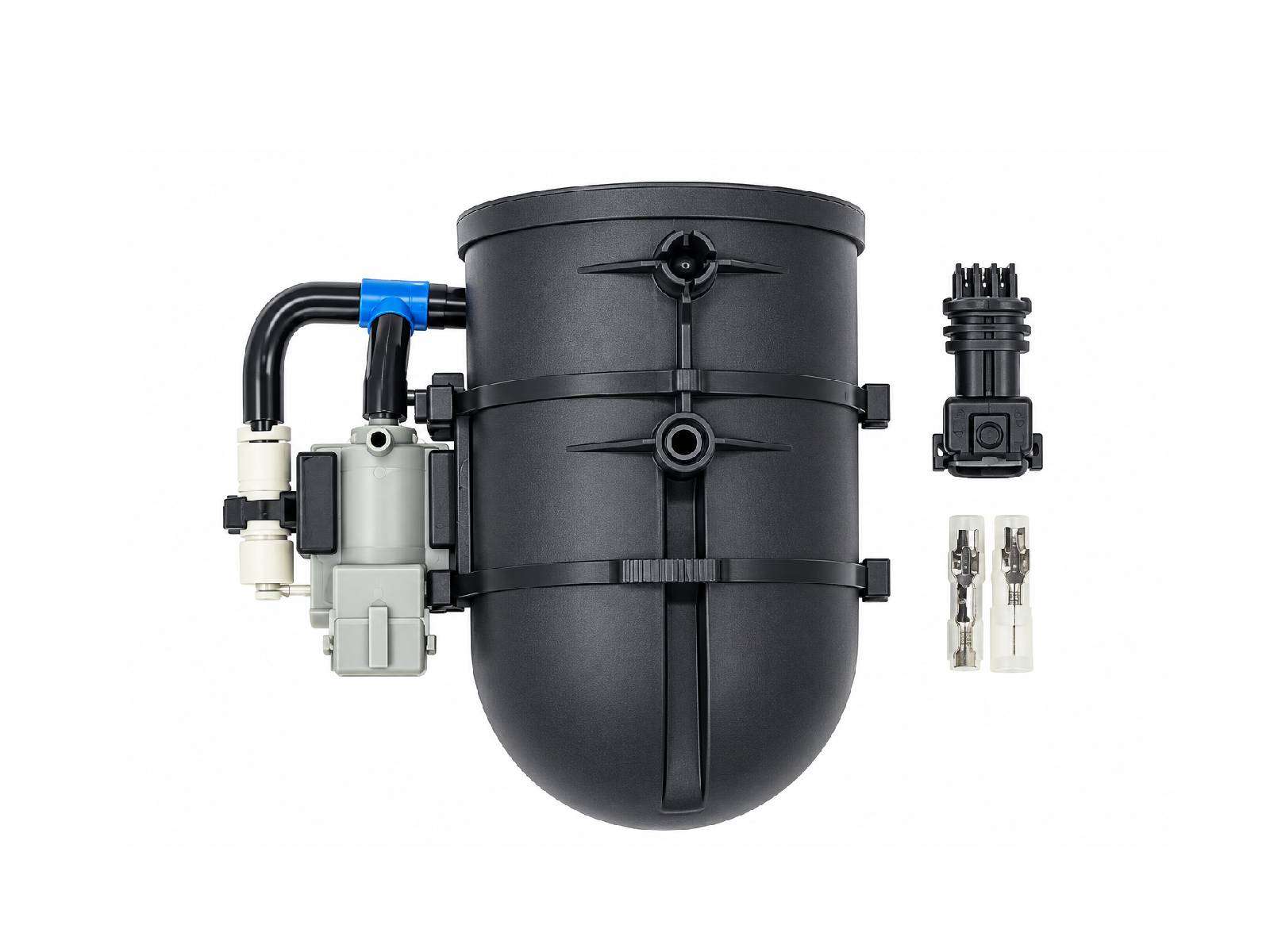

• Vacuum canister, solenoid, check valve, connector and hoses
• Required fasteners and fittings

Configuration Information

Versions are offered for two-bolt and three-bolt cylinder heads, with the corresponding adapter port sizes. Configurations may include or exclude a pair of Adapt Motorsport GT3 intake manifolds. Confirm the cylinder-head pattern, required port diameter and manifold requirement when selecting the kit.

FAQs

• Is the electronic throttle body included?
  Yes. The base kit includes a Bosch 82mm electronic throttle body and connector kit.
• Are intake manifolds included?
  This depends on the selected configuration. Versions are offered both with and without a pair of Adapt Motorsport GT3 intake manifolds.
• Which injector lengths are supported?
  The supplied fuel-rail spacers can be configured for long, medium or short EV14-style injectors.
• Which cylinder-head patterns are available?
  Two-bolt versions support 2.7L, 3.0L and 3.2L applications, while three-bolt versions are intended for 964 and 993 3.6L engines.
