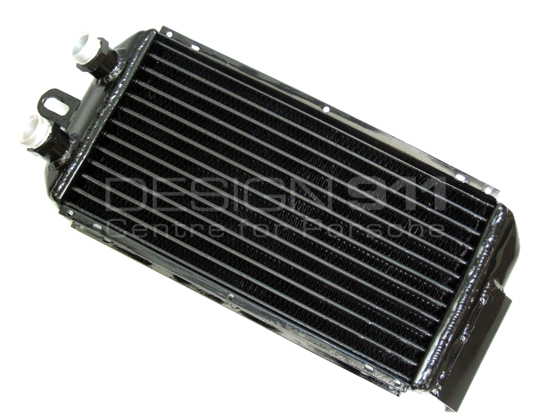

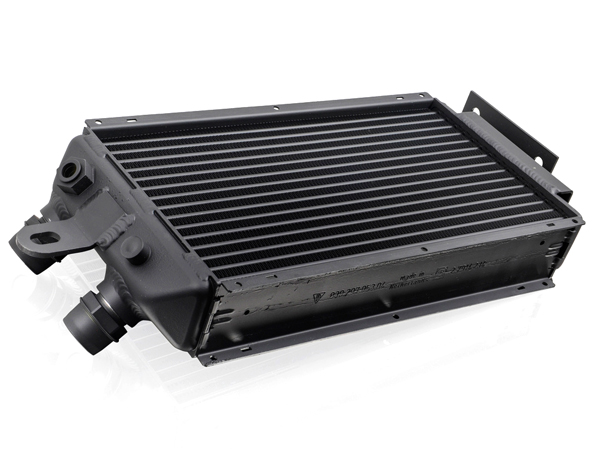

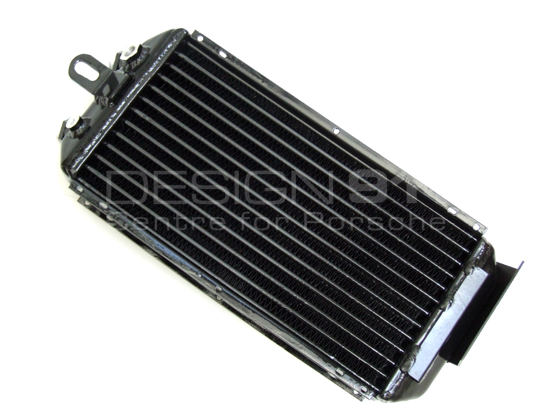

Chamfered tank dual-pass oil cooler RSR Style. Porsche 911/930  ❭  8201

Universal dual-pass oil cooler with direct fitment for Porsche 911 center front oil cooler (RS Style).
Custom end tanks with a 45° chamfer
M22 x 1.5 connections - 22" L x 4.75" H x 2.25" W
Dual pass for increased oil cooling

Fits
911/930 models up to 1989

RS style bar and plate oil coolers for air-cooled Porsche 911/930 models (up to 1989). This oil cooler is a direct-fit performance replacement for the original Porsche items but they can also be used as heavy duty universal units

These new oil coolers have custom end tanks with a 45° chamfered front angle, allowing them to fit flush inside '73-style RS/RSR bumpers. The fittings are pointed straight back. For best airflow and highest performance, CSF recommends cutting the front tub to allow for proper air flow, exiting behind the oil cooler and underneath the vehicle. Cutting the front tub will also give clearance to allow adding a rear fan shroud to pull more air through the cooler at slower speeds or while idling

Product Features:

•High Efficiency & Rugged Durability Bar/Plate Design

• M22 x 1.5 Inlet/Outlet Connections
• "Aero-Flow" Bar Design for Lightweight, Strength, and Maximum Flow
• Triangular flush mounting bolts on both top & bottom (M8x1.25)
• Satin Black Finish for Extreme Protection Against Corrosion and Debris
• Pressure Tested at 120psi
