Charge Air Cooler. Porsche 992.1 Carrera 2019-20  ❭  992145805D

Turbocharger intake pipe. Cyl 4-6.



Fits:
Porsche 991.2 2017>>

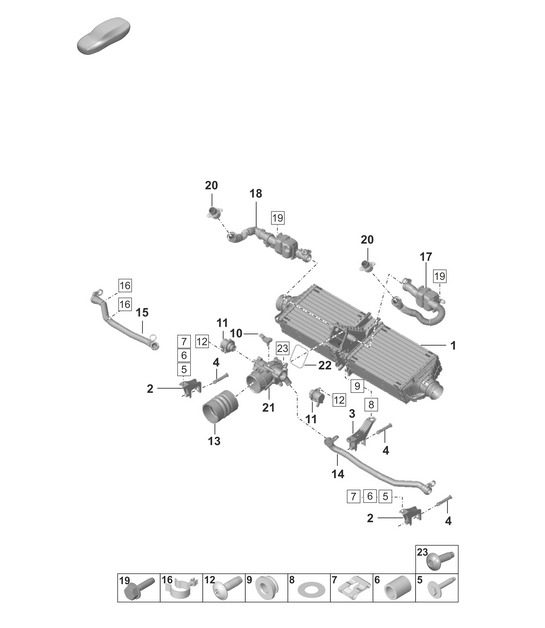

Click 'Zoom in' for large parts diagram.
Diagram ref no 15

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

9A210733401

The product you are viewing cross references to these numbers

Introducing our TTE600 Turbochargers for the 991 CARRERA 3.0 for the ultimate blend of power, response, and Plug&play ease of fitment. Our first upgrade step utilizing the original turbochargers for greater flow and power. TTE600 Performance turbochargers can and do make over 600PS with the right software at low boost with ease, yet offer only a little loss in response but offer a big step too more power. These really do offer a great balance of high power and fast response.

Engineered & Enhanced:

TTE600 Turbochargers start life as Genuine OE units. Engineered and enhanced using mostly BorgWarner components. TTE600 uses RS4 compressor covers that we CNC machine in house to an optimum clearance to allow fitment and maintain the efficiency of a larger more advanced billet TTE compressor wheels. The compressor wheel design features promote greater airflow using a low inertia wheel that performs like a wheel of even greater size and mass. Extended tip technology enables the user to have faster spool-up at lower engine speeds while providing high boost with less heat for the powerful top-end performance.

Turbine and shaft are original BorgWarner items bigger in size than the original for more power.

Special profile 360 deg high-performance motorsport journal bearing is fitted as standard, to remain durable at higher loads with no loss in transient response.

Actuators used are OE units fitted for trouble-free operation.

Equilibrium:

Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled and then the CHRA are dynamically balanced, but this time depending on application at up to 250,000 RPM in multiple planes using our in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with serial numbered balance test result document.

Product Highlights:

• Original BWTS turbocharger as base part
• TTE Billet Milled compressor 6+6 BLADE
• BWTS High-Flow Turbine
• Plug and Play installation
• 600 PS Capable
• Proven TheTurboEngineers quality
• Single parts finely balanced then components assembled and core high-speed VSR balanced
• Supplied with a balance test result document
• Made in Germany

Auxiliary water pump for turbocharger.

Fits:
Porsche 718 Boxster 2017>>
Porsche 718 Cayman 2017>>
Porsche 997.2 Turbo 2010-13
Porsche 991.2 Carrera 2017-19
Porsche 991 Turbo 3.8L 2013-20

Diagram ref no 9

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

9A262025100

The product you are viewing cross references to these numbers
