Clutch Slave Cylinder

Clutch slave cylinder.



Fits:
Porsche 911 1987-89 with G50 Gearbox
Porsche 964 1990-94 with G50 Gearbox
Porsche 993 1994-97 with G50 Gearbox

Click picture for large parts diagram.
Diagram Ref No 13

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

92835194503

The product you are viewing cross references to these numbers

Clutch slave cylinder.



Fits:
Porsche 911 1987-89 with G50/50 GearBox
Porsche 964 1990-94 with G50/50 GearBox
Porsche 993 1994-97 with G50/50 GearBox

A clutch that is engaged/disengaged via hydraulic fluid instead of a cable uses a Clutch Master and Clutch Slave Cylinder. When depressing the clutch pedal a lever is squeezed, forcing hydraulic fluid through hydraulic lines to a "slave cylinder" which houses a piston. The piston forces a push rod to engage or disengage the clutch. A clutch master cylinder that contains the hydraulic fluid sits on a support har near the clutch lever. When either the Master or Slave Cylinder fail the clutch is unable to be disengaged.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

95011623712

The product you are viewing cross references to these numbers

Clutch slave cylinder. Porsche 911 1987-89 / 964 / 993 G50/50 Gearbox

Fits:
Porsche 911 1987-89 with G50/50 Gearbox

Porsche 930 Turbo 3.3L 08/1988-07/1989
Porsche 964 1990-94 with G50/50 Gearbox
Porsche 993 1994-97 with G50/50 Gearbox

A clutch that is engaged/disengaged via hydraulic fluid instead of a cable uses a Clutch Master and Clutch Slave Cylinder. When depressing the clutch pedal a lever is squeezed, forcing hydraulic fluid through hydraulic lines to a "slave cylinder" which houses a piston. The piston forces a push rod to engage or disengage the clutch. A clutch master cylinder that contains the hydraulic fluid sits on a support har near the clutch lever. When either the Master or Slave Cylinder fail the clutch is unable to be disengaged.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

95011623712

The product you are viewing cross references to these numbers

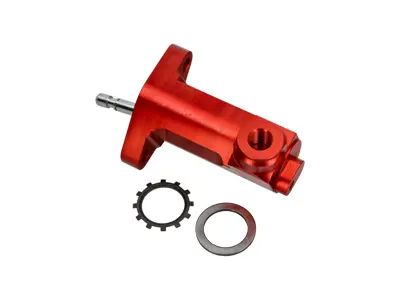

Clutch slave cylinder. Porsche 911 86>> / 964 / 993

Clutch slave cylinder for all air-cooled Porsche 911 Carrera from 1986 and all Carrera 2 and Carrera 4 models of types 964 and 993.

With our clutch slave cylinder for the Porsche 911, the foot force used when clutching is reduced by approx. 30%.

This significantly increases driving comfort, as engaging the clutch is noticeably more comfortable.

The clutch slave cylinder is a hydraulic component, consisting of a cylinder with piston and a movable piston rod. This actuates a mounted arm on the vehicle side, which disconnects or closes the clutch. Since the piston rod does not press centrally on the piston, lateral forces arise in the series cylinder and thus friction between the piston and cylinder. The advantage of the MPL clutch slave cylinder is that these side forces are absorbed by 2 graphite Teflon rings that are guided in grooves in the piston, which means that there is only minimal friction. This structure made it possible to manufacture the housing from weather-resistant aluminium, which also protects against wear thanks to the fine machining of the cylinder and the electrochemical surface treatment. In order to make the actuation even easier and the engagement of the clutch even smoother, the piston surface was slightly enlarged.

The slave cylinder is supplied without the bellows and spring, these must be taken from the original.

Assembly instructions are included in the delivery.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

95011623712

The product you are viewing cross references to these numbers

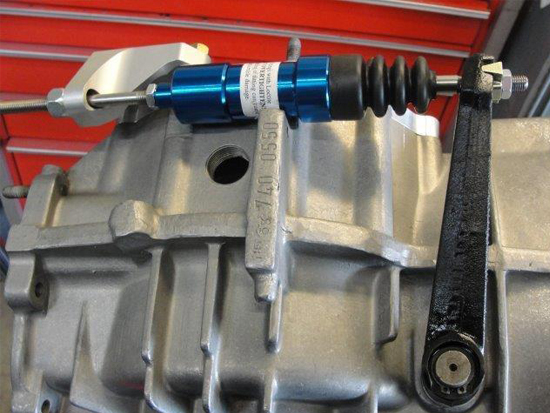

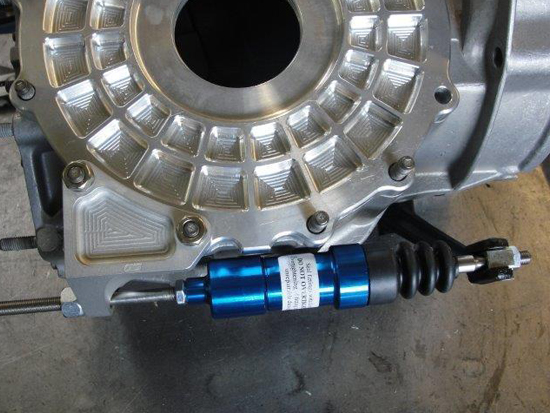

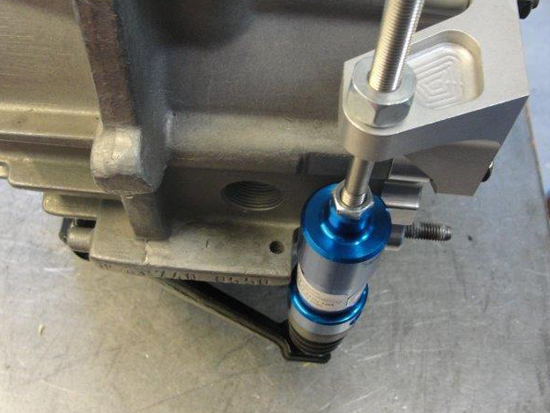

We can provide bolt on hydraulic slave cylinder for your Porsche 911 915 transaxle eliminating all the woes that come with a clutch cable. It can be used for both upright and inverted applications - especially nice for mid engine conversions.

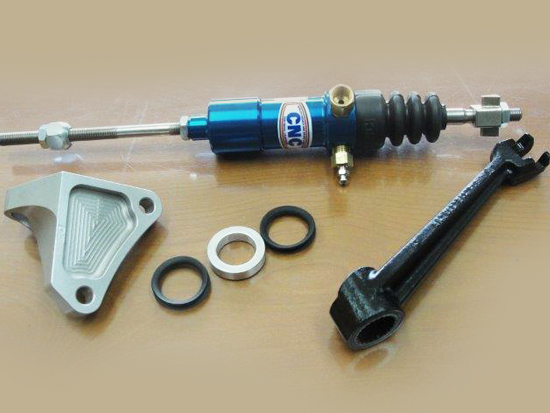

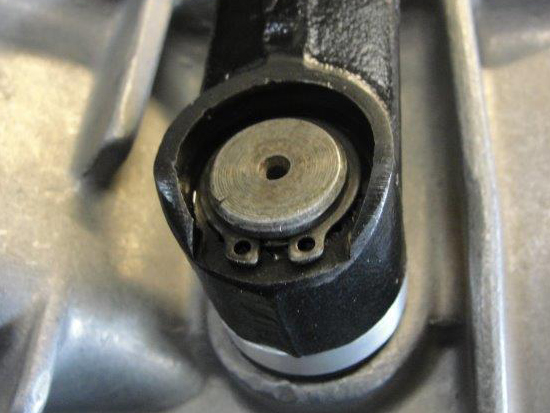

Includes clutch arm, cable clevis, slave cylinder, spacer, seals and our billet slave cylinder bracket with bolts. This requires the use of the 1978 and earlier clutch fork pivot shaft.

Note: This requires a portion of the rib on the bottom of the transmission that holds the original clutch cable to be cut away on 72-77 models. To go back to a cable configuration if one so chooses can be done with a bolt on bracket.

A 3/4" clutch master cylinder is recommended - not included.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

95011623712

The product you are viewing cross references to these numbers

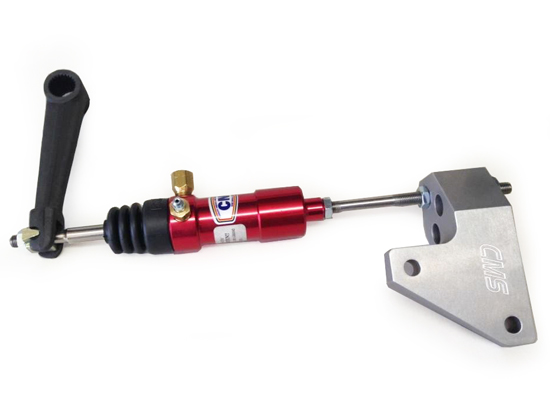

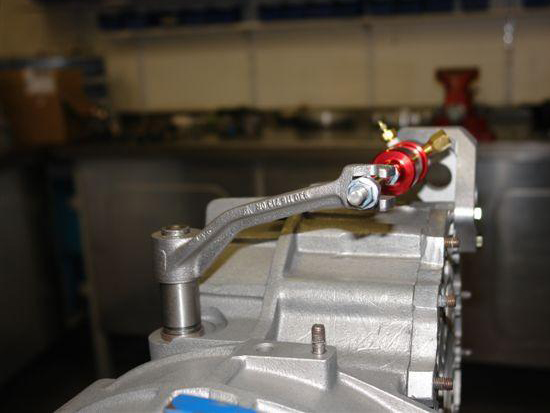

We can provide bolt on hydraulic slave cylinder for your Porsche 911 930 4 speed transaxle eliminating all the woes that come with a clutch cable. It can be used for both upright and inverted applications - especially nice for mid engine conversions.

Includes clutch arm, cable clevis, slave cylinder and our billet slave cylinder bracket with bolts. Please specify if your application is using a short bell housing or long bell housing transaxle as the pivot shafts for the release fork are different. We must modify the arm if you have a long bell housing transmission.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

95011623714

The product you are viewing cross references to these numbers

Hose clip fuel line A9 x 18
Bleed nipple cap for brake caliper and clutch slave cylinder



Fits:
Porsche 356B
Porsche 911 - 1965 to 1989
Porsche 964 - 1989 to 1994
Porsche 993 - 1994 to 1998
Porsche 944 - 1982 to 1989
Porsche 928 - 1978 to 1990

Click 'Zoom in' for large parts diagram.
Diagram ref no 15

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90135192712

The product you are viewing cross references to these numbers

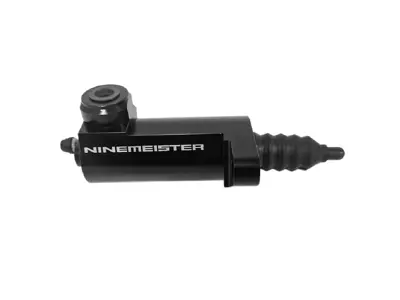

9m G50 Billet Uprated Clutch Slave Cylinder- Precision Engineering for Effortless Clutch Control
The 9m G50 Billet Uprated Clutch Slave Cylinder is a premium, performance-focused upgrade designed to deliver superior clutch feel, reduced weight, and unmatched reliability.
Precision CNC-machined from high-grade 7075 aluminium and hard-anodized for durability, this component is built to exceed the performance of standard equipment while retaining complete compatibility with your G50-equipped Porsche transmission.

Fits:

• Porsche 911 1987-1989 3.2L G50
• Porsche 911 1978-1989 3.3L Turbo (930)
• Porsche 964 (911) C2 1989-93
• Porsche 964 (911) C4 1989-93
• Porsche 964 (911) RS 3.6L 1991-93
• Porsche 964 (911) RS 3.8L 1991-93
• Porsche 964 (911) TURBO 3.3L 1991-93
• Porsche 964 (911) TURBO 3.6L 1991-93
• Porsche 993 (911) C2 1994-97
• Porsche 993 (911) C4 1994-97
• Porsche 993 (911) RS 1994-97
• Porsche 993 (911) C2S 1994-97
• Porsche 993 (911) C4S 1994-97
• Porsche 993 (911) TURBO 1994-96
• Porsche 993 (911) GT2 1994-97
• Porsche 993 (911) TURBO S 1994-97

Diagram ref no 1

Offering a 45% weight reduction compared to conventional cast components, it significantly improves pedal response and reduces fatigue — ideal for both street and track applications.

What It Does
The clutch slave cylinder converts hydraulic pressure from the master cylinder into mechanical force to engage and disengage the clutch.

The 9m billet unit refines this process with enhanced precision and efficiency.

Key Functional Benefits:

• Precision CNC Machining: Guarantees exact tolerances for optimal hydraulic control and reliability.

• 7075 Aluminium Construction: Delivers exceptional strength-to-weight ratio with 45% less mass than the original unit.

• Reduced Pedal Effort: Provides a much lighter, smoother clutch feel, enhancing drivability.

• Hard-Anodized Finish: Resists corrosion, wear, and heat for extended service life.

• Direct Plug-and-Play Replacement: Simple installation with no modifications required.

This uprated billet slave cylinder ensures consistent clutch engagement, better modulation, and reliable operation under high-load or high-temperature driving conditions.

Why Clutch Slave Cylinders Fail
Standard clutch slave cylinders often fail due to design limitations, wear, or environmental exposure. Common causes include:

• Seal Deterioration: Over time, hydraulic seals degrade, leading to fluid leaks and loss of pressure.

• Corrosion: Moisture contamination or fluid neglect can corrode internal components.

• Heat Fatigue: Repeated high-temperature cycles can cause warping or cracking in cast materials.

• Contaminated Fluid: Dirt or debris in the hydraulic system accelerates internal wear.

• Material Fatigue: Cast or composite housings are prone to cracking under high clutch-pressure loads.

When failure occurs, symptoms typically include clutch pedal softness, inconsistent engagement, or complete loss of hydraulic function — all of which can compromise drivability and safety.

Why It Should Be Replaced or Upgraded
Upgrading to the 9m G50 Billet Clutch Slave Cylinder provides lasting performance advantages over conventional units:

• Improved Reliability: 7075 aluminium construction resists flexing, cracking, and corrosion.

• Lighter Pedal Effort: Redesigned internal geometry provides a smoother and lighter clutch action.

• Enhanced Durability: Hard-anodized surface resists wear and contamination.

• Precision Engineering: CNC machining ensures exact fitment and consistent hydraulic pressure.

• Direct Fit: A plug-and-play solution requiring no modifications — perfect for enthusiasts or professional installers.

• Performance Upgrade: Ideal for high-power builds or track-day cars where clutch precision is critical.

Replacing a worn clutch slave cylinder with this uprated billet design improves reliability, performance, and driving experience, ensuring flawless clutch operation for years to come.

Advantages at a Glance

• Precision CNC-machined from 7075 aluminium
• Hard-anodized for long-term corrosion resistance
• 45% lighter than standard cast designs
• Noticeably lighter, smoother pedal feel
• Complete plug-and-play compatibility
• Designed and engineered by 9m (Ninemeister)
• Perfect for both performance street and track vehicles

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

9M95011623712

The product you are viewing cross references to these numbers
