Fuel Pumps

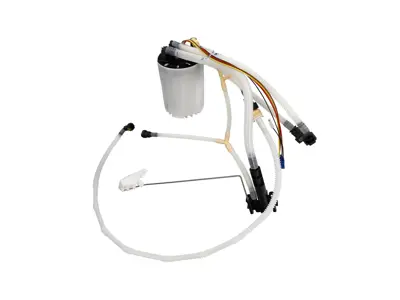

Fuel pump kit by OE Match/Kits for Porsche Panamera 970 MK1 and MK2 3.6L and 4.8L models without auxiliary heater (without option I850/I851), using OE references 97062013201 and 97020142403, designed for selected V6 and V8 variants from 2009–2016.

What This Product Does This kit provides the main fuel pump and associated components to deliver fuel from the tank to the engine at the specified pressure and flow. Correct fuel supply supports stable starting, smooth running, and consistent performance across everyday and higher load driving.

Functions

• Supplies fuel from the tank to the engine
• Maintains system fuel pressure within specified limits
• Supports efficient combustion under varying load
• Helps minimise hesitation, surging, or cutting out from fuel starvation
• Integrates with existing fuel lines, filters, and control electronics

Symptoms of Fault

• Long cranking or intermittent no-start, especially when hot
• Hesitation, surging, or loss of power at higher revs or under load
• Stalling at junctions or when accelerating
• Whining or humming noise from the fuel tank area
• Engine running lean or fuel pressure testing below specification
• Pump not priming or operating consistently

Why Replacement Matters Fuel pump wear, contamination, or electrical issues can reduce fuel flow and pressure, leading to poor drivability, misfires, or non-start conditions. Replacing the pump and key supporting parts together helps restore reliable fuel delivery and reduce repeat labour where ageing components are involved. Kits that follow OE specification are selected to support correct fit and function on the intended Panamera 970 applications.

Fits

• Panamera 970 MK1 (2009–2013)
• Panamera 970 MK1 (2009–2013) ⇒ 970.1 Panamera V6 3.6L 2WD 2009–13
• Panamera 970 MK1 (2009–2013) ⇒ 970.1 Panamera 4 V6 3.6L 4WD 2009–13
• Panamera 970 MK1 (2009–2013) ⇒ 970.1 Panamera S V8 4.8L 2009–13
• Panamera 970 MK1 (2009–2013) ⇒ 970.1 Panamera 4S V8 4.8L 2009–13
• Panamera 970 MK1 (2009–2013) ⇒ 970.1 Panamera GTS V8 4.8L 2011–13
• Panamera 970 MK1 (2009–2013) ⇒ 970.1 Panamera Turbo V8 4.8L 2009–13
• Panamera 970 MK1 (2009–2013) ⇒ 970.1 Panamera Turbo S V8 4.8L 2009–13
• Panamera 970 MK2 (2014–2016)
• Panamera 970 MK2 (2014–2016) ⇒ 970.2 Panamera V6 3.6L 2WD (310Hp) 2014–16
• Panamera 970 MK2 (2014–2016) ⇒ 970.2 Panamera 4 V6 3.6L 4WD (310Hp) 2014–16
• Panamera 970 MK2 (2014–2016) ⇒ 970.2 Panamera GTS V8 4.8L 4WD (440Hp) 2014–16
• Panamera 970 MK2 (2014–2016) ⇒ 970.2 Panamera Turbo V8 4.8L (520Hp) 2014–16
• Panamera 970 MK2 (2014–2016) ⇒ 970.2 Panamera Turbo V8 Executive 2014–16
• Panamera 970 MK2 (2014–2016) ⇒ 970.2 Panamera Turbo S V8 4.8L 2014–16

FAQs

• Q: Is this kit vehicle-specific?
  A: It is intended for listed Porsche Panamera 970 3.6L and 4.8L models without auxiliary heater. Always confirm model year, engine, and option codes such as I850/I851 before purchase.
• Q: What other parts should be checked when replacing the fuel pump?
  A: Inspect fuel filters, strainers, hoses, relays, and electrical connectors for restriction, damage, or poor contact that could affect pump operation.
• Q: Can similar symptoms come from other components?
  A: Yes, blocked filters, failing relays, low voltage supply, or pressure regulator faults can mimic a weak pump, so testing fuel pressure and electrical supply is recommended.

Porsche High Pressure Fuel Pump Kit - Complete Direct Injection Fuel System Repair Kit

This high pressure fuel pump kit is designed for Porsche V6 direct injection engines and includes:

1 x High pressure fuel pump (HPFP)
1 x Fuel pump cam follower
2 x Pump mounting bolts

Fits:

• Porsche 958 Cayenne V6 3.6L Petrol (300Hp) 2010-16
• Porsche 970.2 Panamera S V6 Turbo 3.0L 2WD (420Hp) 2014-16
• Porsche 970.2 Panamera S V6 Turbo 3.0L 2WD Executive 2014-16
• Porsche 970.2 Panamera 4S V6 Turbo 3.0L 4WD (420Hp) 2014-16
• Porsche 970.2 Panamera 4S V6 Turbo 3.0L 4WD Executive 2014-16
• Porsche 95B.1 Macan S Petrol 3.0L V6 (340Bhp) 2014-18
• Porsche 95B.1 Macan GTS Petrol 3.0L V6 (360Bhp) 2014-18
• Porsche 95B.1 Macan Turbo 3.6L V6 (400Bhp) 2014-18

What the High Pressure Fuel Pump Does

Modern Porsche V6 engines use direct fuel injection, which requires significantly higher fuel pressure than traditional injection systems. The high pressure fuel pump is mechanically driven by the camshaft and increases fuel pressure before delivering it to the fuel rail and injectors.

The fuel pump cam follower sits between the camshaft lobe and the pump itself. It transfers camshaft motion to the pump piston while reducing friction and wear.

Together, these components:

• Maintain correct fuel pressure under load
• Ensure precise fuel atomisation
• Support smooth acceleration
• Improve fuel efficiency
• Enable strong performance across the rev range

Without a properly functioning high pressure fuel pump and cam follower, engine performance and reliability are compromised.

Why High Pressure Fuel Pumps and Cam Followers Fail

High pressure fuel pumps operate under extreme pressure and continuous mechanical stress. Over time, failure can occur due to:

• Internal pump wear
• Excessive cam follower wear
• Poor lubrication or oil contamination
• High mileage fatigue
• Heat cycling and mechanical load

The cam follower is a known wear component, as it constantly rides against the camshaft. If it wears excessively, it can reduce pump stroke and fuel pressure output.

Common symptoms of failure include:

• Long cranking or hard starting
• Loss of power under acceleration
• Engine hesitation
• Check engine light
• Fuel pressure fault codes
• Limp mode activation

Ignoring these symptoms can lead to lean running conditions and potential engine damage.

Why You May Need This Complete Fuel Pump Kit

Replacing only the high pressure fuel pump without inspecting or replacing the cam follower can lead to repeat failure. This complete kit ensures all wear components are renewed at the same time.

This kit is recommended for:

• Vehicles displaying fuel pressure fault codes
• Rough running or hesitation under load
• High mileage preventative maintenance
• Engine rebuild or camshaft service
• Diagnosing direct injection fuel pressure issues

Including new mounting bolts ensures proper torque specification and secure installation.
