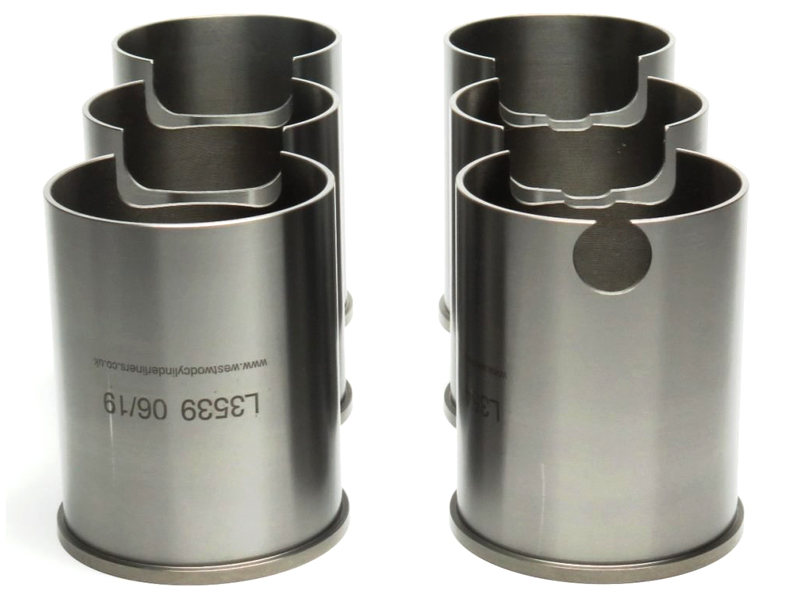

Ductile Iron cylinder liners Porsche 981/991 3.4L 97mm
Engine 3.4L, 97.00mm Bore, Ductile Iron flanged liners (With Hole and cutouts machined)



Fits:
Porsche 991 3.4L Engine Only Price SET OF 6

Porsche 981 3.4L Engine Only Price SET OF 6

NEW Ductile Iron cylinder liners suitable for repairing damaged Alusil bores in 991 / 981 engines.

These New Ductile liners now have the cutouts and gudgeon pin hole already pre machined into the liners. The liners will only need to be bored and honed after fitment.

These liners are becoming very popular, with increasing numbers of cars suffering from scoring in the bores.

The liners will need to be fitted by a professional machine shop. You will not need to get special pistons or rings, as the original spec ones can be used with these Ductile liners.

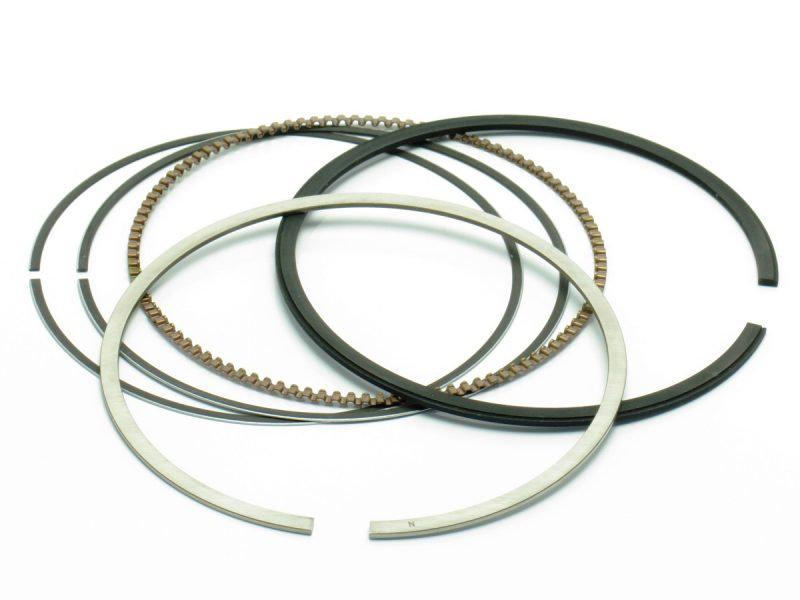

活塞环组。
每台发动机 6 套。价格为 1 套。

#韦斯特伍德#

適用於:
保时捷 996 3.6L 002>>
M96.03 发动机 ø96 毫米，环 1,20 x 1,50 x 2,00 毫米
997 3.6升 M96.05

这些活塞环适用于原装 Locasil 缸孔和我们自己的铸铁/球墨铸铁缸套。这些活塞环是按照原装 OE 规格制造的，因此适合原装活塞。

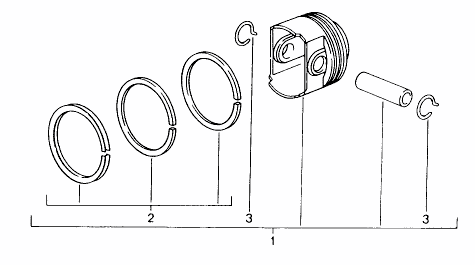

单击“放大”可查看大部件图。
图表参考编号 2。

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

99610305304

您正在查看的产品与这些编号存在交叉引用关系

活塞环组。
每台发动机 6 套。价格为 1 套。

#韦斯特伍德#

適用於:
保时捷 997.2 3.8L 2009-2012 MA1.01 发动机
保时捷 997.2 Turbo 3.8L 2009-2012 MA1.70 发动机
保时捷 991 3.8L Carrera S MA1.03 发动机
保时捷 991 Turbo 3.8L
保时捷 987C Cayman GT4 2016
ø97 毫米，

单击“放大”可查看大部件图。
图表参考编号 2。

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

9A110307502

您正在查看的产品与这些编号存在交叉引用关系

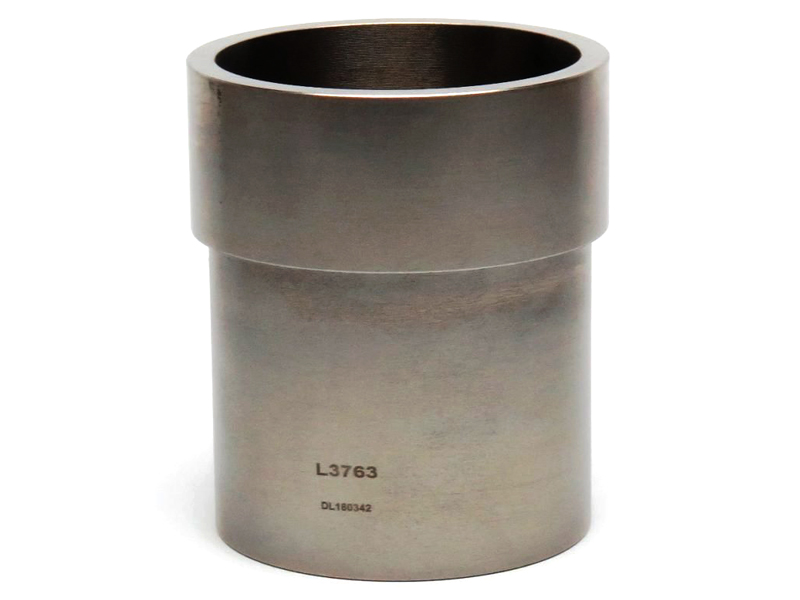

湿式气缸套，孔径半精加工，最终精加工至 99.00 毫米。
安装后需要加工切口和弹簧卡簧插入工具孔。球墨铸铁材料。

#韦斯特伍德#

適用於:
保时捷 997 3.8L价格为

内径 99.00 毫米 / 3.898 英寸
外径 104.20 毫米 / 4.102 英寸
长度 128.00 毫米 / 5.040 英寸
法兰直径 113.50 毫米 / 4.469 英寸
法兰深度 46.00 毫米 / 1.811 英寸


衬套需要由专业机械车间安装。您不需要购买特殊的活塞或环，因为原始规格的活塞或环不能与这些铸铁衬套一起使用。

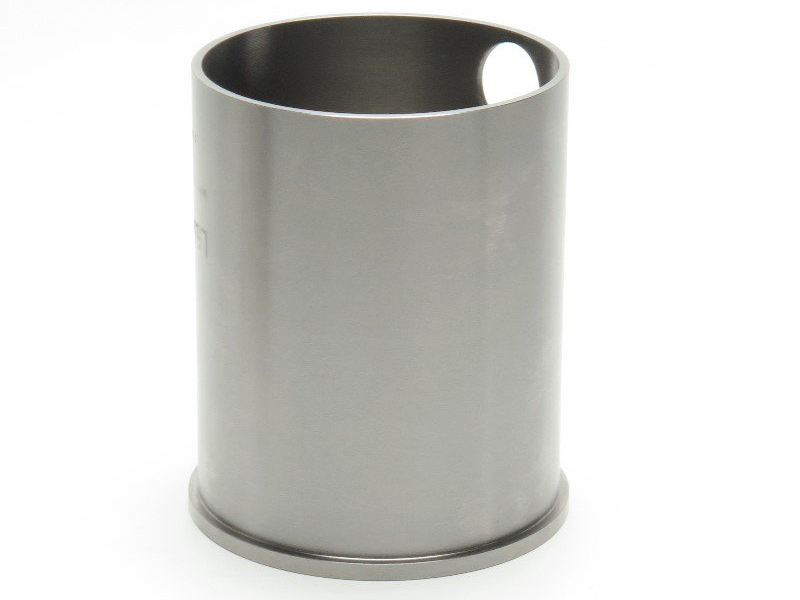

Flanged type liner, semi-finished in the bore for final finishing to 96.00mm.

Note:
This liner has the Insertion Tool hole already machined. Suitable for Cylinder 6. Standard Spun Cast Material.



Fits:
Porsche Cayman 3.4L Price is Each
Porsche Boxster 3.4L Price is Each

Inside Diameter 96.00mm / 3.779inch
Outside Diameter 101.20mm / 3.984inch
Length 128.00mm / 5.040inch
Flange Diameter 106.65mm / 4.199inch
Flange Depth 5.00mm / 0.197inch

The liners will need to be fitted by a professional machine shop.

Flanged type liner, semi-finished in the bore for final finishing to 96.00mm.

Note:
This liner has the Insertion Tool holes already machined. Suitable for Cylinders 4 & 5. Standard Spun Cast Material.



Fits:
Porsche Cayman 3.4L Price is Each
Porsche Boxster 3.4L Price is Each

Inside Diameter 96.00mm / 3.779inch
Outside Diameter 101.20mm / 3.984inch
Length 128.00mm / 5.040inch
Flange Diameter 106.65mm / 4.199inch
Flange Depth 5.00mm / 0.197inch

The liners will need to be fitted by a professional machine shop.

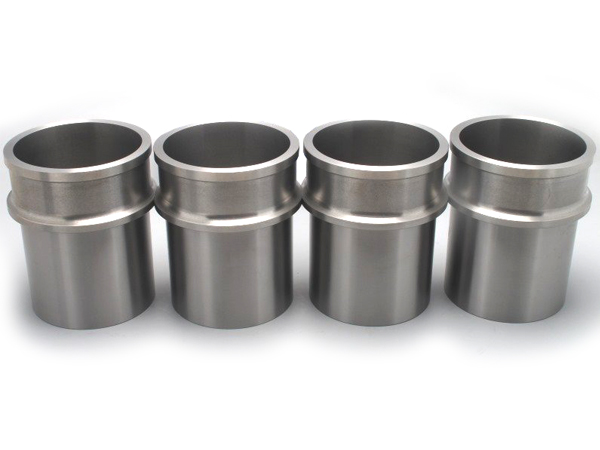

适合100.00mm孔径的球墨铸铁气缸套。

#韦斯特伍德#

价格为每个气缸。整套发动机需要四件。

湿式衬套，具有半成品孔，用于安装后进行最终精加工。

适合：
保时捷 944 2.5L / 3.0L - 4 缸发动机

请注意：如果您需要不同尺寸的衬垫，请向我们发送询问。

适合 104.00 毫米孔径的球墨铸铁气缸套。

#韦斯特伍德#

价格为每个气缸。整套发动机需要两个气缸。
2 个 L2817
2 个 L2823

湿式衬套，带有半成品孔，用于安装后进行最终精加工，法兰上有 2 个平面。

适合：
保时捷 944 2.5L / 3.0L - 4 缸发动机

请注意：如果您需要不同尺寸的衬垫，请向我们发送询问。

适合 104.00 毫米孔径的球墨铸铁气缸套。

#韦斯特伍德#

价格为每个气缸。整套发动机需要两个气缸。
2 个 L2817
2 个 L2823

湿式衬套，带有半成品孔，用于安装后进行最终精加工，法兰上有 1 个平面。

适合：
保时捷 944 2.5L / 3.0L - 4 缸发动机

请注意：如果您需要不同尺寸的衬垫，请向我们发送询问。

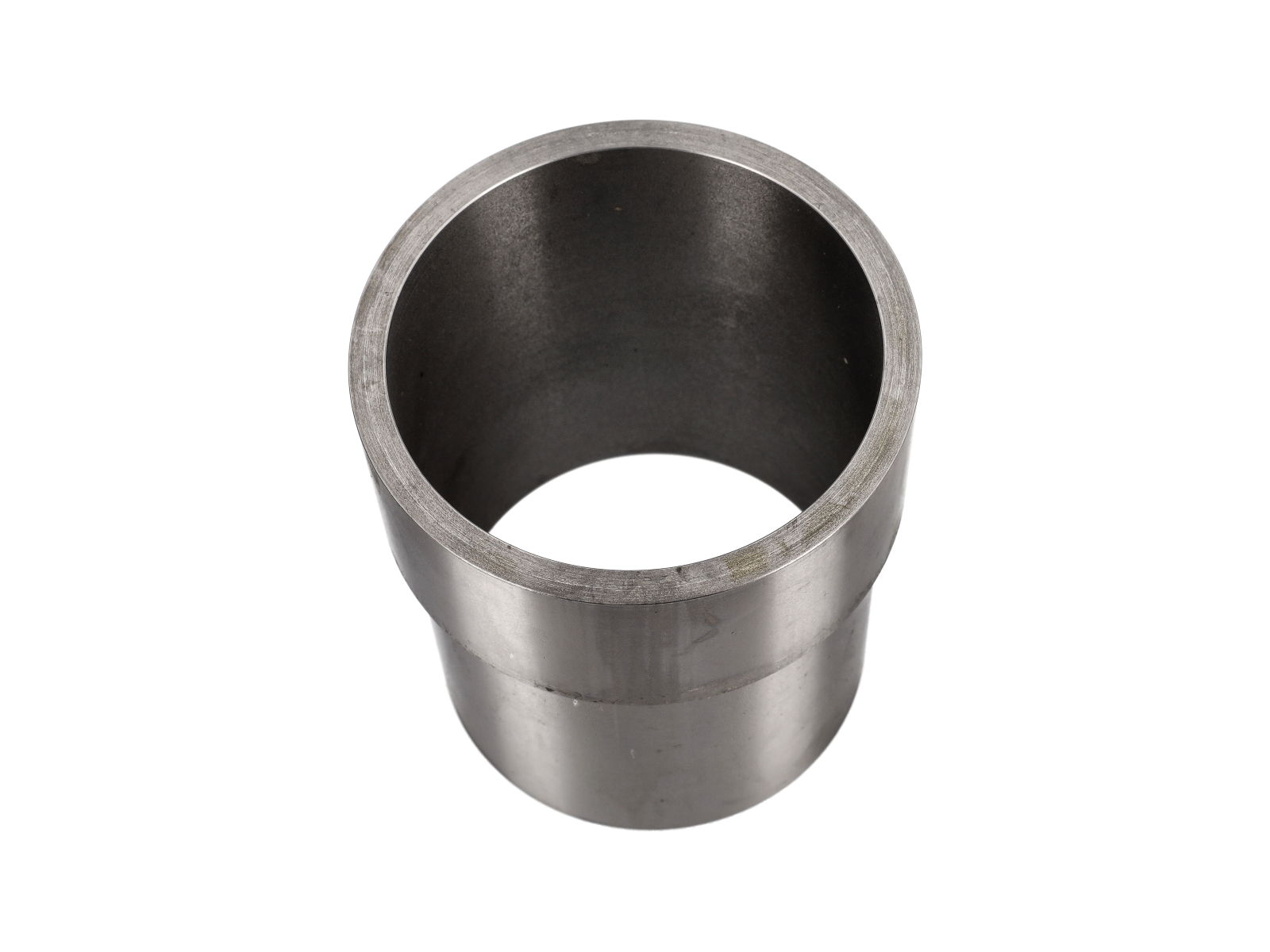

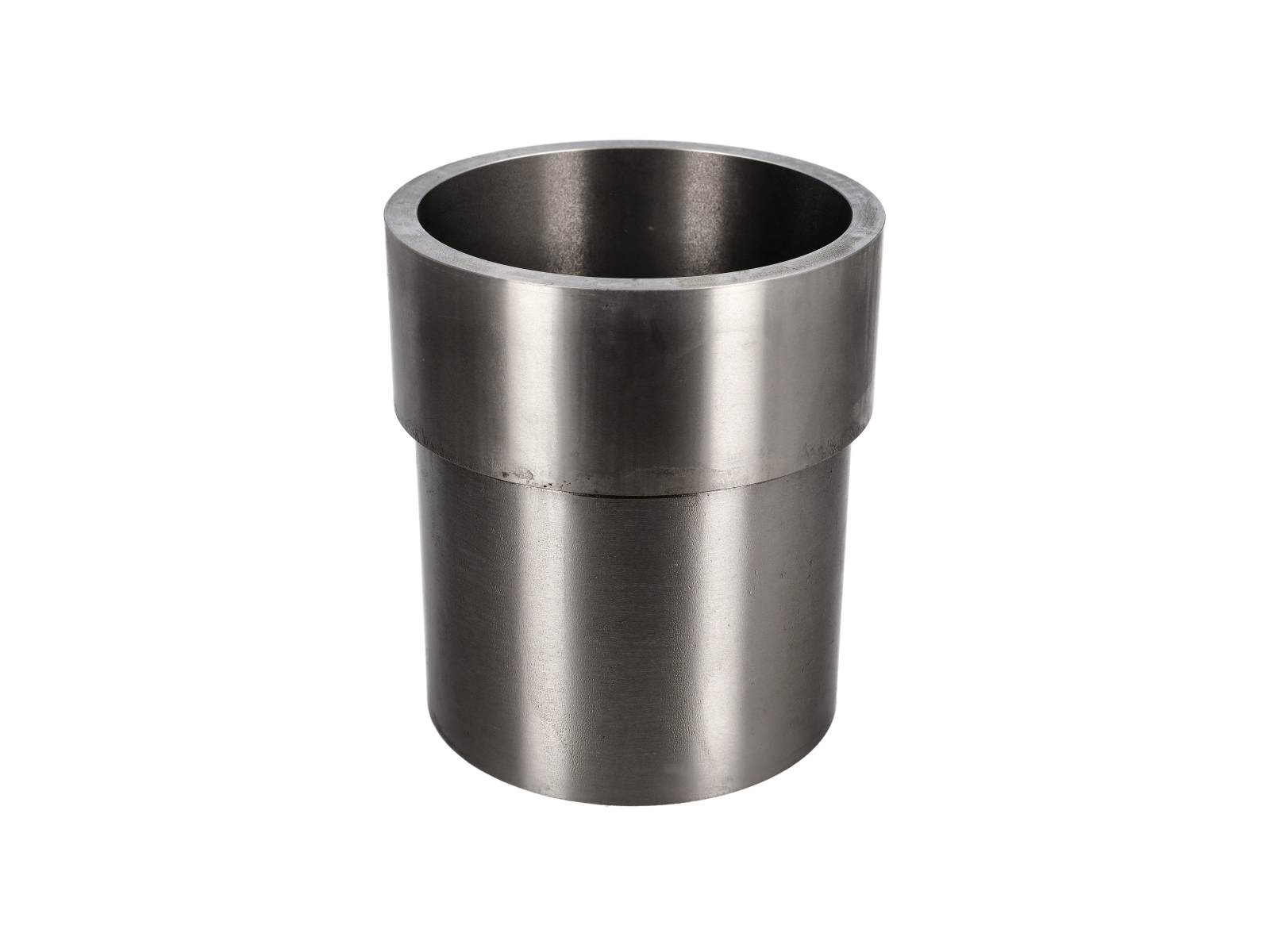

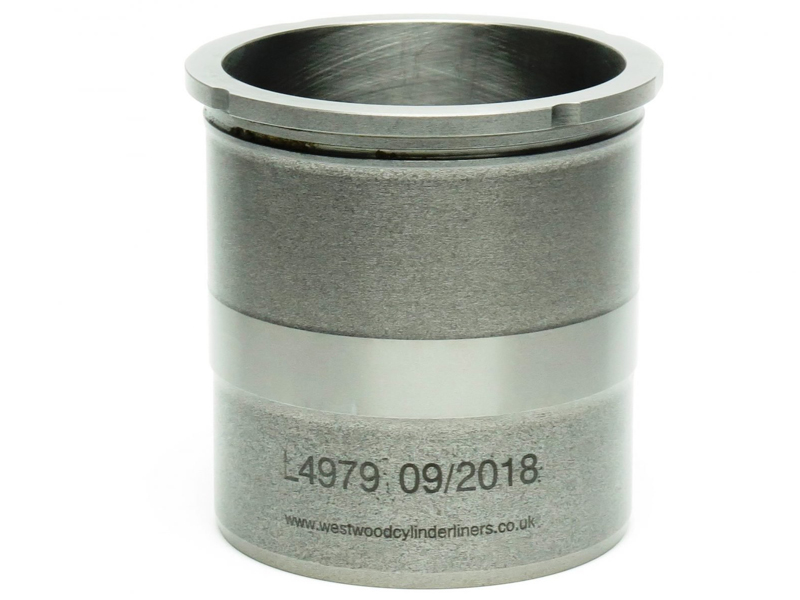

L 4979 衬套可直接替换 100.00 毫米孔径 996 GT2 衬套、100 毫米孔径、湿式
材质：球墨铸铁

#韦斯特伍德#

适合：
保时捷 996 3.6L GT2价格为

衬套需要由专业机械车间安装。

Ductile Iron cylinder liners Porsche 991 3.8L 102mm
Engine 3.8L, 102.00mm Bore, Ductile Iron flanged liners (With Hole and cutouts machined)



Fits:
Porsche 991 3.8L MA1 Engine Only Price SET OF 6

Porsche 997.2 3.8L MA1 Engine Only Price SET OF 6

NEW Ductile Iron cylinder liners suitable for repairing damaged Alusil bores in 991 engines.

These New Ductile liners now have the cutouts and gudgeon pin hole already pre machined into the liners. The liners will only need to be bored and honed after fitment.

These liners are becoming very popular, with increasing numbers of cars suffering from scoring in the bores.

The liners will need to be fitted by a professional machine shop. You will not need to get special pistons or rings, as the original spec ones can be used with these Ductile liners.

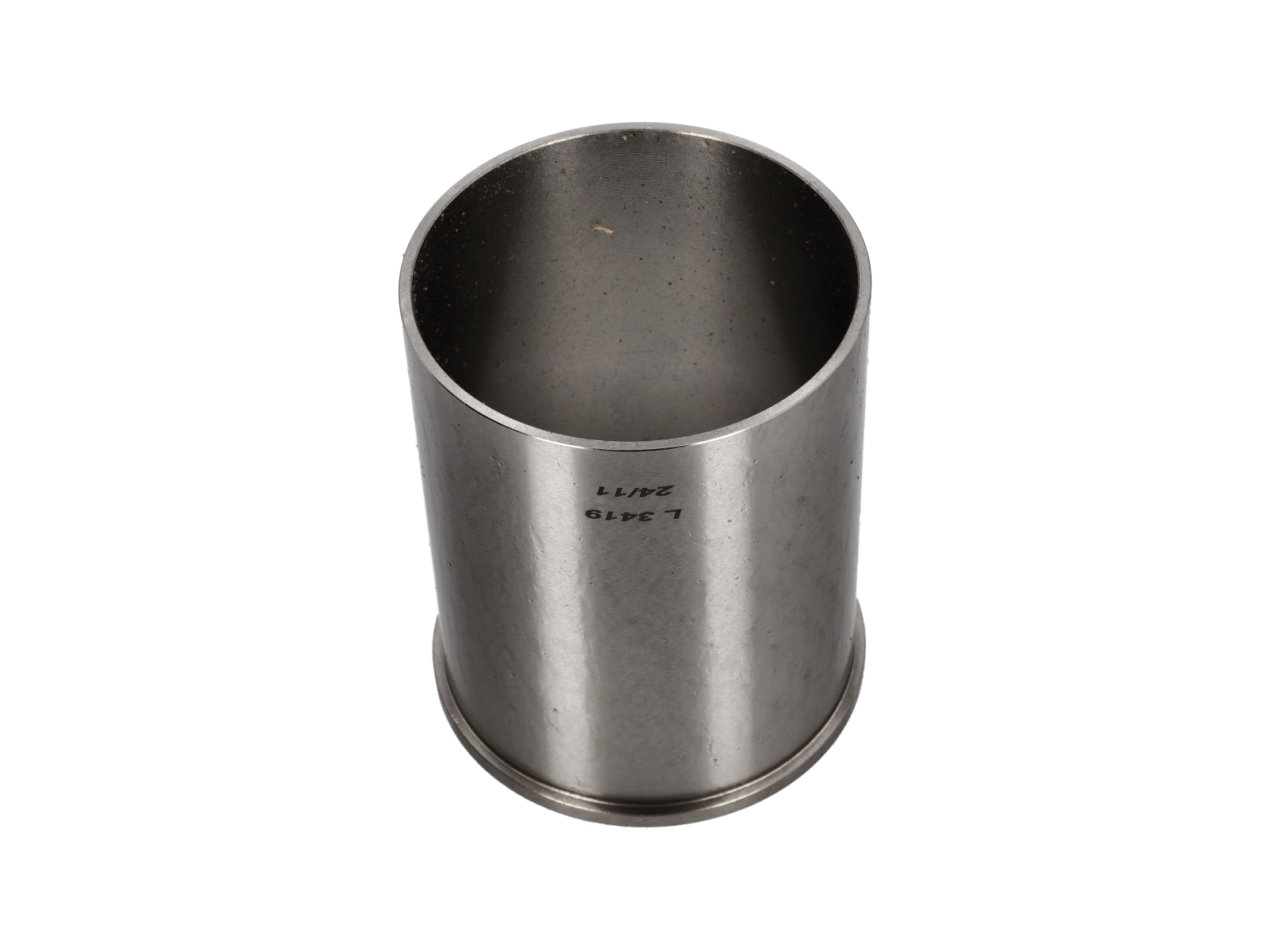

铸铁气缸修理衬套 保时捷 V8 车型法兰修理衬套
半成品内孔 92.50mm
（内孔最终精加工尺寸小于 1.00 毫米）

#韦斯特伍德#

适合：
保时捷卡宴V8

这些衬管变得越来越受欢迎，因为越来越多的汽车受到内衬划伤的困扰。

衬套需要由专业机械车间安装。您不需要购买特殊的活塞或环，因为原厂规格的活塞或环可以与这些铸铁衬套一起使用。

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

948100901XX

您正在查看的产品与这些编号存在交叉引用关系

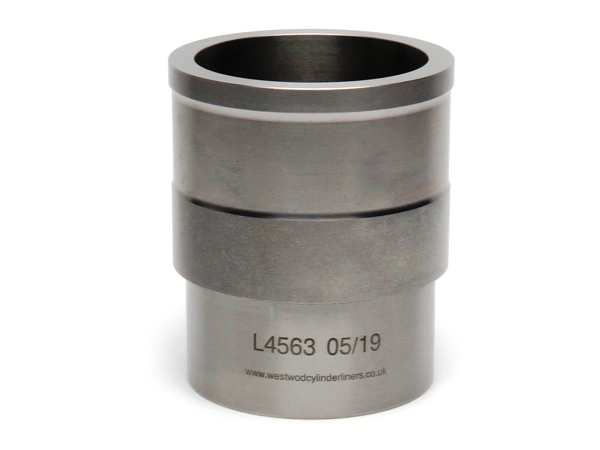

3.4 / 3.6, 96.00mm Bore, Wet Type liner for repairing top of the block (No cutouts).

• Finish Bore Size:  96.00mm Less 0.50
• Outside Diameter:  101.20mm
• Overall Length:  127.75mm
• Flange Diameter:  110.50mm
• Flange Depth:  45.21mm

Fits:
Porsche 996 3.4L Price is Each
Porsche 996 3.6L Price is Each
Porsche 997 3.6L Price is Each
Porsche Cayman 3.4L Price is Each
Porsche Boxster 3.4L Price is Each

NEW Cast Iron cylinder liner suitable for repairing damaged Alusil bores in 996 / Cayman 3.4 / 3.6 engines, especially with "D" Chunk Damage

The liners will need to be fitted by a professional machine shop. You will not need to get special pistons or rings, as the original spec ones can be used with these cast iron liners.

铸铁气缸修理衬套保时捷 996 3.4 / 3.6，96.00 毫米孔径，法兰衬套（无切口）。

#韦斯特伍德#

适合:
保时捷 996 3.4L单价
保时捷 996 3.6L单价
保时捷 997 3.6L单价
保时捷 Cayman 3.4L单价
保时捷 Boxster 3.4L单价

内径 96.00 毫米 / 3.779 英寸
外径 101.20 毫米 / 3.984 英寸
长度 128.00 毫米 / 5.039 英寸
法兰直径 106.65毫米/4.199英寸
法兰深度 5.00 毫米 / 0.197 英寸

新型铸铁气缸套适用于修复 996 发动机中损坏的 Alusil 孔。

这些衬管变得越来越受欢迎，因为越来越多的汽车受到内衬划伤的困扰。

衬套需要由专业的机械车间安装。您无需购买特殊的活塞或活塞环，因为原厂规格的活塞或活塞环可以与这些铸铁衬套兼容。

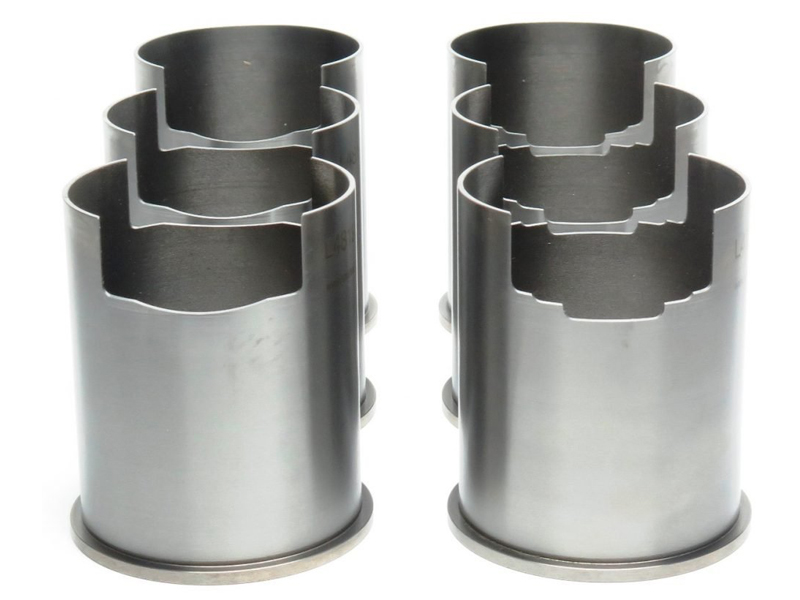

Ductile Iron cylinder liners Porsche 996 3.6L / 997 3.6L
Engine 3.6L, 96.00mm Bore, Ductile Iron flanged liners (With Hole and cutouts machined)



Fits:
Porsche 996 3.6L Price SET OF 6
Porsche 997 3.6L Price SET OF 6

Inside Diameter 96.00MM / 3.779inch

NEW Ductile Iron cylinder liners suitable for repairing damaged Alusil bores in 996 engines.

These New Ductile liners now have the cutouts and gudgeon pin hole already pre machined into the liners. The liners will only need to be bored and honed after fitment.

These liners are becoming very popular, with increasing numbers of cars suffering from scoring in the bores.

The liners will need to be fitted by a professional machine shop. You will not need to get special pistons or rings, as the original spec ones can be used with these Ductile liners.

Ductile Iron cylinder liners Porsche 997 3.8L C2S / C4S.
Engine 3.8L, 99.00mm Bore, Ductile Iron flanged liners (With Hole and cutouts machined).



Fits:
Porsche 997 3.8L Price SET OF 6

Inside Diameter 99.00mm / 3.898inch

NEW Ductile Iron cylinder liners suitable for repairing damaged Alusil bores in 997 engines.

These New Ductile liners now have the cutouts and gudgeon pin hole already pre machined into the liners. The liners will only need to be bored and honed after fitment.

These liners are becoming very popular, with increasing numbers of cars suffering from scoring in the bores.

The liners will need to be fitted by a professional machine shop. You will not need to get special pistons or rings, as the original spec ones can be used with these Ductile liners.
