后控制臂

Adjustable lower control arms (lower wishbone)



Fits
Porsche 986 Boxster - Front and Rear
Porsche 996, 997 - Front and Rear
Porsche 991 - Front Only
Porsche 987 Boxster and Cayman - Front and Rear
Porsche 981 Boxster and Cayman - Front and Rear
Porsche 718 Boxster and Cayman - Front and Rear

Set of 2 x Adjustable lower control arms - 1 pair, required per axle

Elephant Racing adjustable lower control arms provide the camber, caster and precision you need. Length adjustable similar to the factory GT3 control arms, but without the need for shims.

Quick and Easy Adjustments – No need to keep a stock of shims on hand, length is easily adjusted by rotating the center hex head. Rotate clockwise to expand or counter-clockwise to contract the arm length.Adjustments can be made within minutes. No shims to mess with. Perfect setup to make quick changes for the track.

Widen Track – Use in combination with our camber plates on the front, or our adjustable length arms upper control arms on the rear to widen the track. This allows you to achieve a wider track without altering the scrub radius as happens when using wheel spacers.

Heim Joint – Our spherical bearings eliminate the deflection associated with rubber bushings. These bearings maintain stable suspension alignment, and improve feedback.

Fully Weather Sealed – Proper boots at both the ball joint and heim joint ends to keep water and contaminants out for extended life. These arms are suitable for extended road and track use.

Camber Adjustment – Extended range of adjustment lets you achieve aggressive camber. Or you can dial it back to get a factory street alignment on lowered cars.

Caster Adjustment – Our Caster Adjuster allows you to tune this important setting that the factory left out. A must-have for cars that have extended lower control arms to correct for un-intended caster change that is caused by the extended arms. Rotate the center puck and bolt down to secure the setting.

The arms are fully rebuildable with replaceable heim and ball joints.

On 996, 997, & 991 Cars:
Center puck can be also used as a wheelbase adjuster on the rear to draw the wheels back to improve weight distribution. It is a great tuning aid for adjusting out understeer

Litronic Bracket – This bracket is required for cars that are originally equipped with the litronic headlights. This adapter bracket attaches to the headlight angle sensor.


相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

2180001

您正在查看的产品与这些编号存在交叉引用关系

BBi Autosport adjustable rear toe kit



Fits
Porsche 981 Boxster
Porsche 981 Cayman

Features :

•   Provides additional rear toe adjustment
•   OEM link is non-adjustable and eccentric bolt provides limited adjustment range, causing excessive tire wear and handling issues.
•   Helps maintain proper rear end suspension geometry
•   Fits rear axle
•   Each Kit Includes Pair of 2 Links

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

BBITOE981

您正在查看的产品与这些编号存在交叉引用关系

带有可调衬套的跟踪控制臂。

#罗勒#

两个衬套均采用黑色 95A 材料以实现最佳性能，并配有偏置外套管和 CNC 加工内套，可在车上调整主销后倾角和外倾角，从而快速轻松地优化车轮定位。（不包括工具或扳手）这些臂具有悬架几何调整功能，主销后倾角最多可增加 0.4°，外倾角调整范围为 +/- 0.75°

OEM 零件编号： 98133105301、99733104180、99634105319

適用於:

正面
保时捷 997 GT2、GT3 和 GT3RS
保时捷 986 Boxster（1997-2004）
保时捷 996（1997-2005）

后部
保时捷 997 GT2、GT3 和 GT3RS
保时捷 997 配备涡轮增压
保时捷 718 Boxster/Cayman
保时捷 981 Boxster/Cayman
保时捷 986 Boxster（1997-2004）
保时捷 987 Boxster（2005-2012）
保时捷 987C Cayman（2005 - 2012 年）
保时捷 996（1997-2005）

请注意：您将需要 997 个前叉臂来容纳可调节衬套，因为它们比标准衬套更宽。
当您将此商品添加到购物篮时，系统将提示您也需要添加必填产品。

提供可调节和不可调节衬套选项，以适应不同的驾驶和性能要求。

请点击‘放大’查看图表（第 21 号）

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

3602409961G

您正在查看的产品与这些编号存在交叉引用关系

GT3 ERX Inner lower control arm (LCA), Rubber Bushing Module.



Fits:
Porsche 996, 997, 991, 992 W/ GT3 Style Control Arms (Front/Rear),
Porsche Boxster, Cayman 1999>> W/ GT3 Style Control Arms (Front Only)

Elephant Racing has developed GT3 type inner lower control arms.
These are readily available and dimensionally identical to the factory parts. They can be mix-matched with the factory type inner/outer lower control arm and shims.
The Elephant Racing inner arm is offered in two flavors, GT3 Street Inner Lower Control Arm and GT3 Cup Inner Lower Control Arm. GT3 street is equipped with a rubber bushed central bushing and the GT3 Cup is equipped with a solid caster adjustable central bushing.
Our GT3 Street Inner Lower Control Arm has sport-hardness rubber bushings to provide upgraded control and driver feedback while still offering good road noise isolation.
Our GT3 Cup Inner Lower Control Arms uses weather sealed spherical bearings. These deliver superior precision, control, and performance. They will transmit a bit more road noise than rubber bushings.

These can be paired with a choice of GT3 outer control lower arms:
– Elephant Racing GT3 Street Outer Lower Control Arms
– Elephant Racing GT3 Cup Outer Lower Control Arms
– Factory GT3 Street Outer Lower Control Arms

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

2180039

您正在查看的产品与这些编号存在交叉引用关系

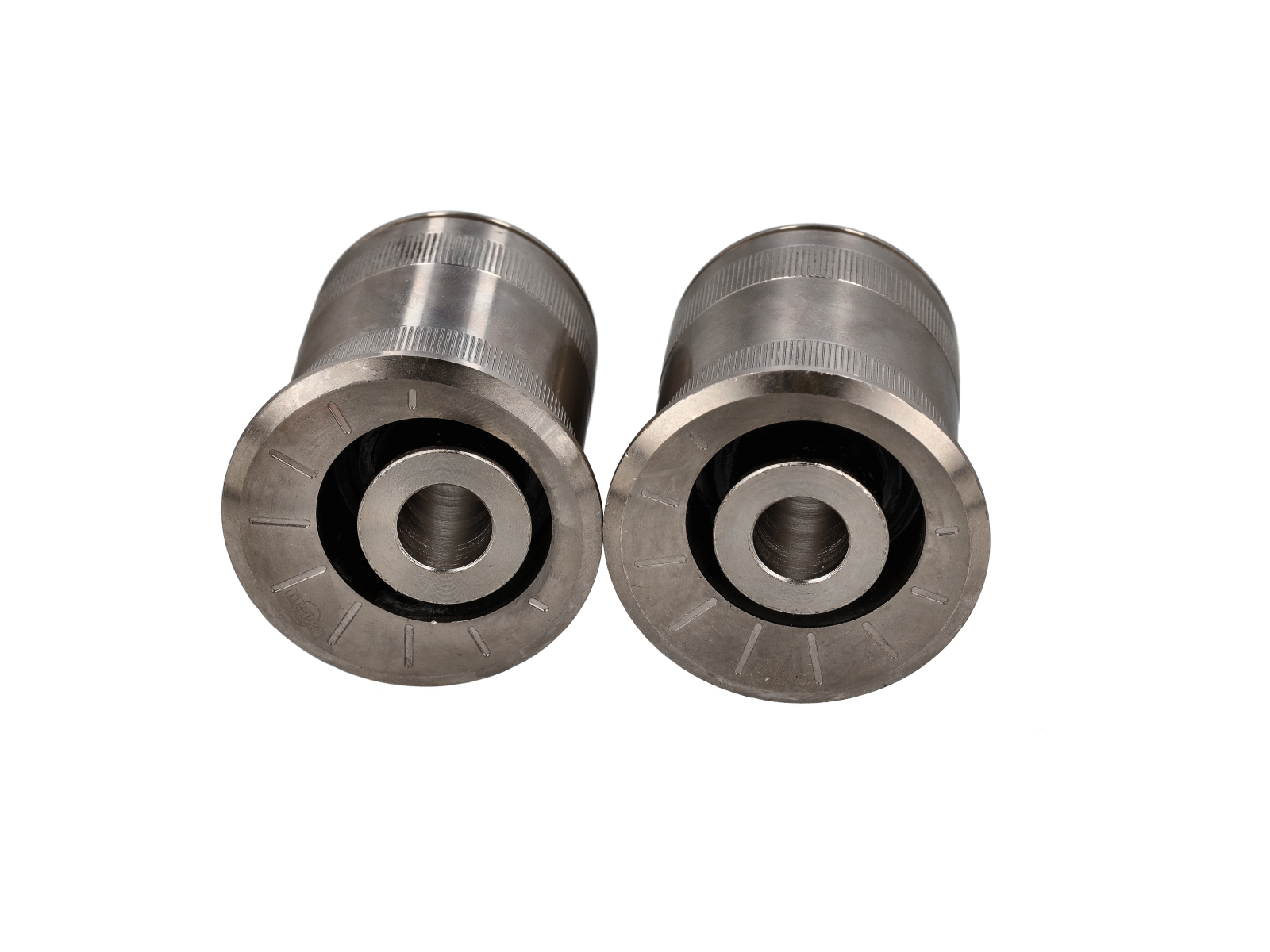

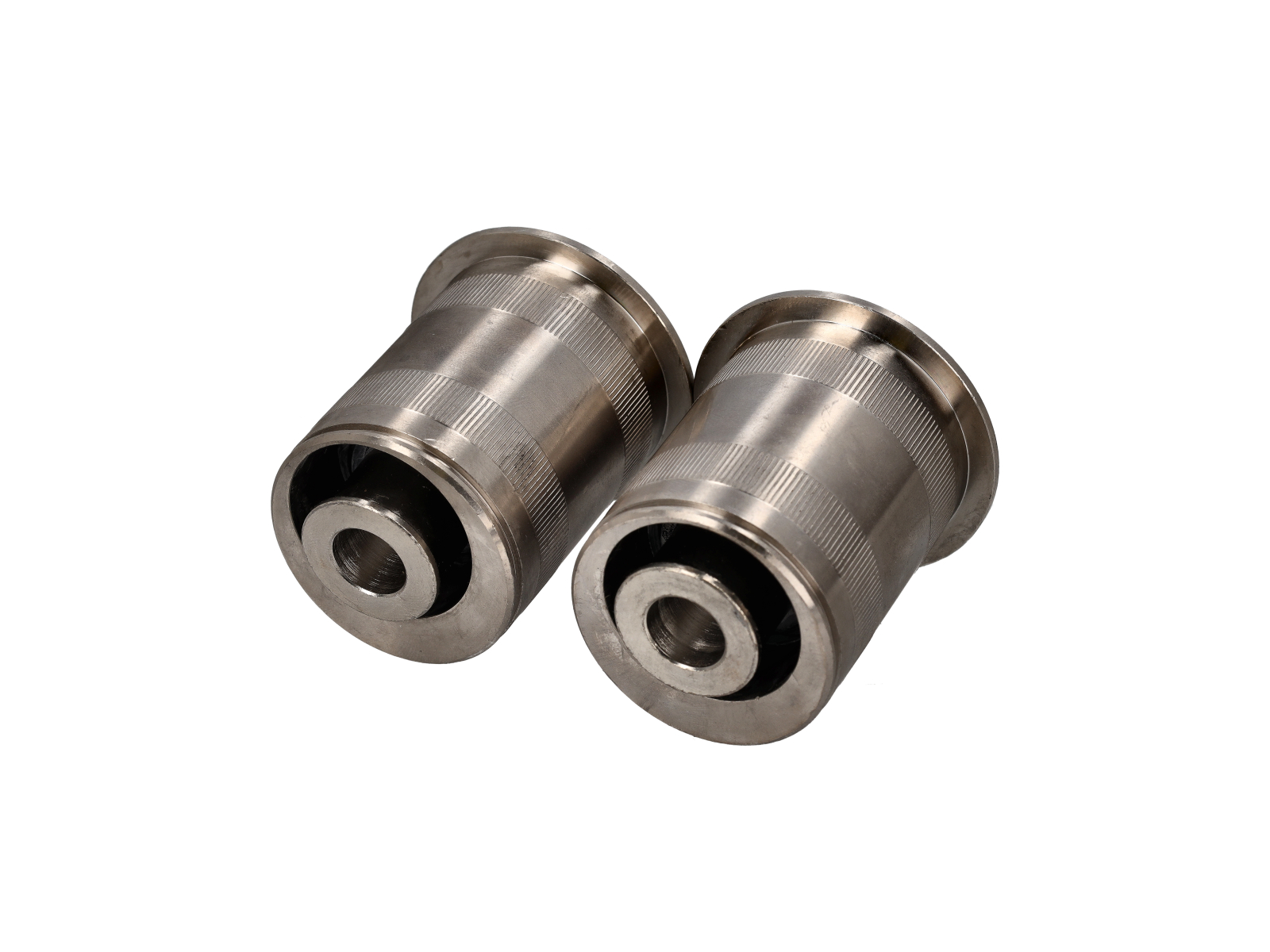

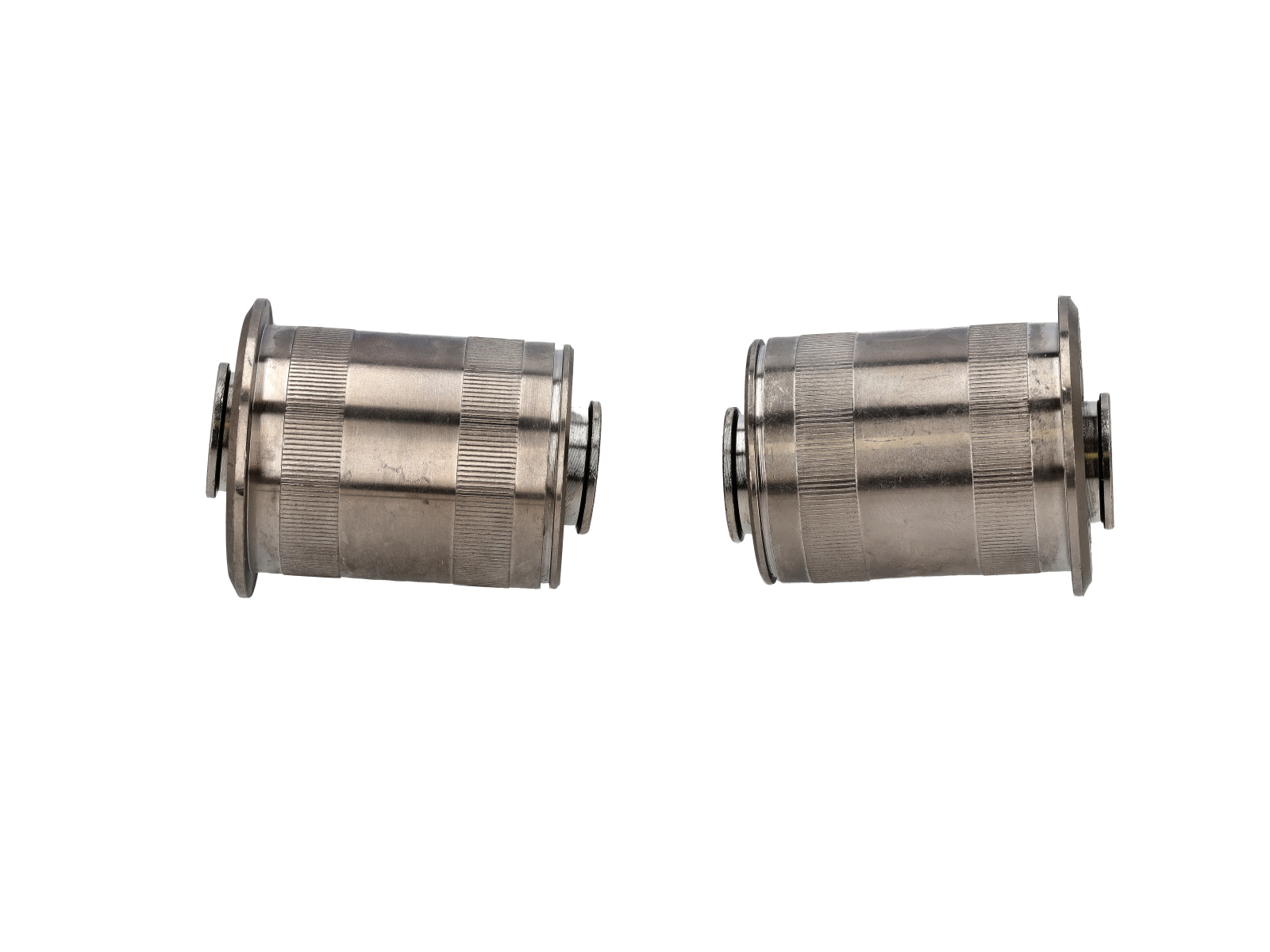

Lower control arm eccentric monoballs.
1 kit required per axle



Fits
Porsche 986 Boxster - Front and Rear
Porsche 987 Boxster and Cayman - Front and Rear
Porsche 996 - Front and Rear
Porsche 997 - Front and Rear
Porsche 981 - Front and Rear
Porsche 718 - Front and Rear
Porsche 991 - Front Only

Our Eccentric Control Arm Monoball Cartridges replace inner rubber bushings with spherical bearings, providing low friction and precisely holding camber settings.
The eccentric design allows increasing or decreasing camber, as needed.

Increasing Camber

Position the eccentric to maximize Lower Wishbone length, adding about .86 degree of negative camber on the 996/997 rear suspension, about .36 degree of negative camber on the Boxster rear suspension, and .39 degrees on the 996/997/Boxster front suspension.
Cost effective for cars that just want extra camber. For even more camber and ease of adjustment, see our GT3 type fully adjustable control arms.

Decreasing Camber

Position the eccentric to minimize Lower Wishbone length. Perfect for lowered cars that have too much negative camber and want to get back to factory camber settings to minimize tire wear on the street. Makes rear camber about .86 degrees more positive & front camber about .39 degrees positive for 996/997 while Boxsters will get about .39 degrees positive front and .36 degrees positive rear.



Made from hardened steel, plated and weather-sealed, these bearings are made to last. Fits the front or rear stock and GT3 type control arms.

Sized to fit factory original control arms. Not compatible with some aftermarket replacement control arms that use a larger non-stock size bushing.

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

2260006

您正在查看的产品与这些编号存在交叉引用关系

RSS Rear adjustable toe/bump steer link REAR
SET OF 2

Replacement for 98133104501, 98133104502



Fits:
Porsche 981 Boxster / Boxster S
Porsche 981 Cayman / Cayman S

The RSS Adjustable Rear Toe Steer Kit is designed for Porsche models that have been lowered. This kit will help minimize the suspension geometry change in the REAR of the vehicle. Allows for toe adjustment at the toe steer arm giving the ability to make adjustments independent of the factory eccentric bolts which may not offer sufficient adjustment. Allows for bump steer adjustment. Greatly improves handling and feedback. Eliminates rubber bushing deflection. For off road use only.

The links are sold as a pair for the rear of the car.

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

301

您正在查看的产品与这些编号存在交叉引用关系

Spherical bearing inner GT3 monoballs for factory GT3 lower arm.

1 kit required per axle



Fits
Porsche 986 Boxster - Front and Rear
Porsche 987 Boxster and Cayman - Front and Rear
Porsche 996 - Front and Rear
Porsche 997 - Front and Rear
Porsche 981 - Front and Rear
Porsche 718 - Front and Rear
Porsche 991 - Front Only
Porsche 992 - Front Only
* Not For '12+ 991, 992 GT3/GT4

GT3 Street Inner Spherical Bearing Module

Unlike the factory rubber bushed GT3 inner control arms, our spherical bearings do not deflect under load.
They are fully weather sealed to keep out water and grit for extended life.

• Use in combination with factory GT3 street type control arm only
• Does not fit 991 GT3 or GT4 arms
• Easy Bolt-On
• Weather-sealed
• Sold as pair
• Front and Rear for 996, 997, 986, 987, 981, 718
• Front only on 991

相关参考编号
相关编号、被取代编号、交叉引用编号或替代编号，供比较之用。

2180030

您正在查看的产品与这些编号存在交叉引用关系
