Adapt Motorsport

Adapt Motorsport intake manifold adapter kit with fuel rails for Porsche 911 2.7L, 3.0L and 3.2L engines with two-bolt cylinder heads. It enables later Porsche 964 or 993 3.6 intake manifolds to be installed as part of an electronic fuel injection conversion.

Fits:

• Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
• Porsche 911 1978-1983 3.0L / SC
• Porsche 911 1984-1986 3.2L
• Porsche 911 1987-1989 3.2L G50

Kit Contents

• 6 CNC-machined aluminium intake adapters
• 4 fuel-rail spacer posts
• 4 bolts for standard full-length Bosch injectors
• 12 nuts and washers
• 2 Fuel rails

What This Product Does

The six adapters provide the interface between an earlier two-bolt Porsche 911 cylinder head and a later 964 or 993 3.6 intake manifold. Each adapter is machined to suit the selected cylinder-head port diameter and transitions to the manifold's 42mm bore.

A compact overall height helps retain clearance around the throttle body, idle air control valve and the upper area of the engine bay. The injector position is aligned above the existing CIS injector relief in the intake port.

Functions

• Connects a 964 or 993 3.6 intake manifold to an earlier two-bolt cylinder head
• Supports conversion from CIS or an earlier injection arrangement to EFI
• Positions the injector over the original CIS injector-port relief
• Provides a tapered transition to the 42mm intake-manifold bore
• Maintains a short installed height for engine-bay clearance
• Accommodates Bosch injectors with 14mm O-ring fittings

Technical Details

• Five-axis CNC-machined high-grade aluminium construction
• Protective anodised finish
• Designed for Porsche 911 2.7L, 3.0L and 3.2L two-bolt cylinder heads
• Fuel-rail spacers are marked for adjustment to long, medium or short Bosch injector formats
• Manifold-side transition is designed for a 42mm bore

Components Not Included

Intake manifolds, rubber joining sleeves, fuel injectors and hose clamps are not supplied with the base adapter kit.

Installation Notes

This component forms part of a custom EFI installation rather than a complete conversion package. Confirm the cylinder-head port diameter, injector length, manifold specification and clearance around the throttle and idle-control components before assembly. Engine-management hardware, fuel delivery components and calibration must be selected for the completed installation.

Adapt Motorsport electronic individual throttle body (eITB) kit for the Porsche 964 and 993. Six individual throttles are operated as two independently controlled cylinder banks by a modern drive-by-wire engine-management system.

Fits

What This Product Does

The eITB assembly replaces conventional pedal cables and cross-bank throttle linkages with direct electronic actuation. A compatible aftermarket ECU can regulate each bank, control idle through the throttle motors and tailor throttle opening to pedal position and operating conditions.

Functions

• Controls six individual throttles using two independent drive-by-wire motors
• Permits ECU calibration of pedal response and throttle sensitivity
• Manages idle airflow without requiring a separate idle-control valve
• Provides individual bypass adjustment for balancing cylinder airflow
• Supports suitable ECU strategies including torque control, launch functions and automatic rev matching
• Removes mechanical cables and cross-bank linkages that can develop friction, flex or free play

Technical Details

• Six pre-assembled individual throttle bodies with two electronic motors and integrated position sensing
• Independent motors and dual-channel throttle-position sensing for the left and right cylinder banks
• Two fuel rails designed for short EV14 fuel injectors
• Six intake adapters and two throttle-driver connector kits supplied according to the selected configuration
• High-stiffness throttle couplings, sealed roller bearings and thermal-barrier cylinder-head spacers
• Vacuum connections for balancing instruments, brake servos and other vacuum-operated equipment

Installation and ECU Requirements

Installation, synchronisation and calibration should be handled by a specialist experienced with individual throttles and dual-motor DBW systems. The ECU must control two independent throttle motors and provide six analogue sensor inputs plus two complete four-pin half-bridge motor-driver outputs. Appropriate DBW fail-safe operation and engine limp modes are required. Adapt Motorsport identifies the MoTeC M150, Emtron KV8 and ECUmaster Pro 8 as suitable examples, although compatibility must be checked for each installation. Dual wideband oxygen sensors are recommended for closed-loop calibration of both cylinder banks, particularly at idle.

Configuration Notes

• Three-bolt versions can accommodate air conditioning
• A 993 retaining power steering and air conditioning requires short injectors and a low-profile fuel fitting
• This electronic ITB system is specified by Adapt Motorsport for off-road and racing applications only

Electronic individual throttle body kit by Adapt Motorsport for classic Porsche 911 engines. This drive-by-wire system uses separate throttle bodies for all six cylinders, with independent electronic control for the left and right cylinder banks.

Fits:

• Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
• Porsche 911 1978-1983 3.0L / SC
• Porsche 911 1984-1986 3.2L
• Porsche 911 1987-1989 3.2L G50

What This Product Does

The eITB kit electronically controls airflow to each cylinder without conventional throttle cables or linkages between the pedal, cylinder banks and individual throttles. Its two direct-drive motors incorporate throttle-position sensing, allowing a suitable aftermarket ECU to manage idle opening, pedal sensitivity and bank-specific throttle operation.

Functions

• Controls six individual throttle bodies through two independent drive-by-wire motors
• Allows throttle sensitivity and pedal response to be calibrated within the ECU
• Uses the electronic throttles to regulate idle airflow without a separate idle-control valve
• Provides individual air-bypass adjustment for cylinder balancing
• Supplies vacuum connections for balancing equipment, brake servos and other vacuum-operated devices
• Supports compatible ECU strategies such as torque management, launch control and automatic throttle blipping

Technical Details

• Base kit includes six pre-assembled individual throttle bodies, two DBW motors with integrated sensors, six intake adapters, two fuel rails and two throttle-driver connector kits
• Internal throttle-position sensors use dual-channel redundancy, with independent motors and sensing for each cylinder bank
• Fuel rails are designed for short EV14 fuel injectors
• Construction includes stiff throttle couplings, sealed roller bearings and thermal-barrier spacers between the throttle assemblies and cylinder heads
• Selectable 2-bolt and 3-bolt configurations are offered with multiple port and butterfly diameters; intake-manifold and tapered velocity-stack adapter options are available
• Compatible control systems must operate two independent throttle motors and provide six analogue sensor inputs plus two complete four-pin half-bridge driver outputs

Why Replacement Matters

This kit is intended for EFI conversions and modified classic Porsche engines requiring electronically managed individual throttles. Removing mechanical cables and cross-bank linkages eliminates their adjustment, backlash and friction points while giving the calibrator direct control over throttle opening. Installation, balancing and mapping should be completed by a specialist familiar with dual-DBW ITB systems. Adapt Motorsport identifies MoTeC M150, Emtron KV8 and ECUmaster Pro 8 as suitable examples, although ECU compatibility must be confirmed for each installation. Fail-safe DBW functions, engine limp modes and dual wideband oxygen sensors for closed-loop tuning of both banks are required or recommended as applicable.

Important

• Two-bolt versions are not compatible with the standard air-conditioning compressor
• This eITB system is specified by Adapt Motorsport for off-road and racing applications only

V-Rib Belt Crank Pulley and Tensioner Upgrade  Kit by Adapt Motorsport replaces the original V-belt arrangement while retaining the standard fan drive ratio.

Fits:

• Porsche 911 1984-1986 3.2L
• Porsche 911 1987-1989 3.2L G50

What This Product Does

This conversion uses a multi-rib belt to transfer drive to the cooling fan and alternator. The eccentric-mounted idler pulley provides controlled tension adjustment and reduces belt whip, addressing limitations that can affect the original V-belt arrangement during fast engine-speed changes, hard driving or operation with a high-current alternator.

Functions

• Transfers crankshaft rotation to the fan and alternator through a V-rib belt
• Provides precise belt-tension adjustment through the eccentric idler pulley
• Reduces belt whip during rapid changes in engine speed
• Retains the original fan drive ratio
• Provides pulley markings for base and cam timing work

Technical Details

• Precision-machined from high-grade aluminium
• Black anodised finish
• Component strength validated using finite element analysis
• Timing notches at 0, 5, 120 and 240 degrees
• Standard kit includes the V-rib crank pulley, eccentric idler pulley kit, fan pulley and fan belt
• Standard+Trigger kit adds a lightweight 36-1 crank trigger disc for a crankshaft position sensor used in EFI conversions

Symptoms Addressed

• Original V-belt being displaced during rapid engine-speed changes
• Belt slip when driving a high-current alternator
• Accelerated belt wear caused by slipping
• Excessive belt tension being used in an attempt to prevent slip
• Loss of charging voltage or cooling-fan drive following belt displacement or failure

Why Replacement Matters

A displaced or slipping fan belt can interrupt alternator and cooling-fan operation. The V-rib design increases the available belt contact area, while the adjustable idler allows tension to be set without relying on excessive belt loading that may shorten alternator-bearing life.

Kit Options

• Standard Kit: V-rib crank pulley without trigger disc, eccentric idler pulley assembly, fan pulley and fan belt.
• Standard+Trigger Kit: All Standard Kit components plus a lightweight 36-1 trigger disc for EFI crankshaft-position sensing.

FAQs

• Does this kit change the fan speed? No. The original fan drive ratio is retained.
• Is it suitable for 2.7 or 3.0 engines? No. Adapt Motorsport states that the pulleys interfere with the 2.7 and 3.0 engine consoles.
• What is the trigger option for? It adds a 36-1 crank trigger disc for a crankshaft position sensor when carrying out an EFI conversion.
• Are timing marks included? Yes. The pulleys are marked at 0, 5, 120 and 240 degrees for base and cam timing settings.

Adapt Motorsport GT3 intake manifolds for air-cooled Porsche 911 engines using the brand's intake conversion system. Supplied as a pair, they combine cast-aluminium construction with geometry developed specifically for the shorter spacing of air-cooled engines.

Fits:

• Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
• Porsche 911 1978-1983 3.0L / SC
• Porsche 911 1984-1986 3.2L
• Porsche 911 1987-1989 3.2L G50
• Porsche 911 1975-1977 3.0L Turbo (930)
• Porsche 911 1978-1989 3.3L Turbo (930)
• Porsche 964 (911) C2 1989-93
• Porsche 964 (911) C4 1989-93
• Porsche 964 (911) RS 3.6L 1991-93
• Porsche 964 (911) RS 3.8L 1991-93
• Porsche 964 (911) TURBO 3.3L 1991-93
• Porsche 964 (911) TURBO 3.6L 1991-93
• Porsche 993 (911) C2 1994-97
• Porsche 993 (911) C4 1994-97
• Porsche 993 (911) RS 1994-97
• Porsche 993 (911) C2S 1994-97
• Porsche 993 (911) C4S 1994-97
• Porsche 993 (911) TURBO 1994-96
• Porsche 993 (911) TURBO S 1994-97

What This Product Does

These manifolds adapt the Porsche GT3 intake manifold concept for air-cooled 911 engine architecture. Their interfaces accommodate the shorter engine spacing, while computational fluid dynamics modelling was used during development to refine the internal airflow geometry.

Functions

• Provides GT3-style intake manifolds for compatible air-cooled engine conversions
• Interfaces with Adapt Motorsport DBW intake adapters and throttle kits
• Provides vacuum connections for the brake booster and idle-air bypass
• Supports additional vacuum-source requirements within a custom installation
• Uses discreet tabs to secure wiring and vacuum-control components

Technical Details

• Supplied as a pair of intake manifolds
• Cast-aluminium construction
• Designed for the shorter intake spacing of air-cooled Porsche 911 engines
• Factory-style external lugs are omitted for a cleaner installation
• Additional integrated vacuum ports
• Matching adapter sleeves are optional components for connection to the intake adapters, throttle body and resonance flap



FAQs

• Is this a complete intake system? This product consists of a pair of intake manifolds. Matching adapter sleeves and other intake-system components are separate elements.
• What material are the manifolds made from? They are manufactured from cast aluminium for a factory-style appearance.
• Are vacuum connections included? Yes. The manifolds incorporate ports for brake-booster vacuum, idle-air bypass and other vacuum-source requirements.
• Can they be used with electronic throttles? They are designed to integrate with Adapt Motorsport DBW intake adapters and throttle kits.

Check fitment for your specific vehicle, engine specification and intake conversion before ordering.

This Adapt Motorsport kit contains four precision-moulded rubber sleeves for the throttle body and resonance-flap connections to the intake manifold on compatible Porsche 996 models. Eight hose clamps are supplied for fitting the complete set.

Fits:

• Porsche 996 C2 3.4L 1997-08/01
• Porsche 996 C4 3.4L 1997-08/01
• Porsche 996 GT3 MKI 1999-02
• Porsche 996 GT3 MKII 2003>>
• Porsche 996 GT3 RS 2003-04

Diagram Ref No 11 and 14

What This Product Does

The moulded boots form the flexible connections between the throttle body, resonance flap and intake manifold. Their model-specific shape is designed to provide a close fit within the original intake assembly.

Functions

• Connects the relevant intake manifold components
• Provides four matching moulded rubber boots
• Allows the associated sleeves and clamps to be renewed together

Technical Details

• Manufacturer: Adapt Motorsport
• Porsche OE reference: 99611068650
• Construction: precision-moulded rubber
• Marking: embossed Adapt Motorsport branding
• Kit contents: four rubber boots and eight hose clamps
• Manufacturer schematic references: items 9 and 11

Not Included

The intake throttle body adapter, also described as the T-piece, is shown for identification only and is not supplied with this kit.

FAQs

• How many rubber boots are supplied?
  The kit contains four moulded rubber boots.
• Are fitting clamps included?
  Yes. Eight hose clamps are supplied.
• What is the Porsche OE reference?
  The stated reference is 99611068650.
• Is the throttle body adapter included?
  No. The intake throttle body adapter or T-piece is excluded.

This Adapt Motorsport intake manifold rubber sleeve kit is precision-moulded for Porsche 996 and 997 GT3 models. It contains six embossed rubber sleeves and the clamps required for installation.

Fits:

• Porsche 996 GT3 MKI 1999-02
• Porsche 996 GT3 MKII 2003>>
• Porsche 996 GT3 RS 2003-04
• Porsche 997 MK1 GT3 / GT3 RS 2007-09
• Porsche 997 MKII GT3 / GT3 RS 2010-11

What This Product Does

The kit provides custom-moulded rubber sleeves for the intake manifold connections on the listed GT3 models. The six-piece configuration allows the matching sleeves to be renewed together.

Functions

• Provides model-specific sleeves for the intake manifold
• Forms fitted rubber connections within the intake assembly
• Allows all six matching sleeves to be replaced as one set

Technical Details

• Manufacturer: Adapt Motorsport
• Construction: custom-moulded rubber
• Marking: embossed Adapt Motorsport branding
• Kit contents: six rubber sleeves and 12 hose clamps
• Manufacturer schematic reference: item 14
• Designed for Porsche 996 GT3 and 997 GT3 applications



Not Included

The manifold intake adapters shown in the product imagery are for identification purposes and are not supplied with this kit.

FAQs

• How many sleeves are included?
  The kit contains six custom-moulded rubber sleeves.
• Are hose clamps supplied?
  Yes. The set includes 12 hose clamps.
• Are the manifold intake adapters included?
  No. The adapters shown in the imagery are not part of the kit.
• Which Porsche models is the kit designed for?
  It is intended for the listed Porsche 996 GT3 and 997 GT3 applications.

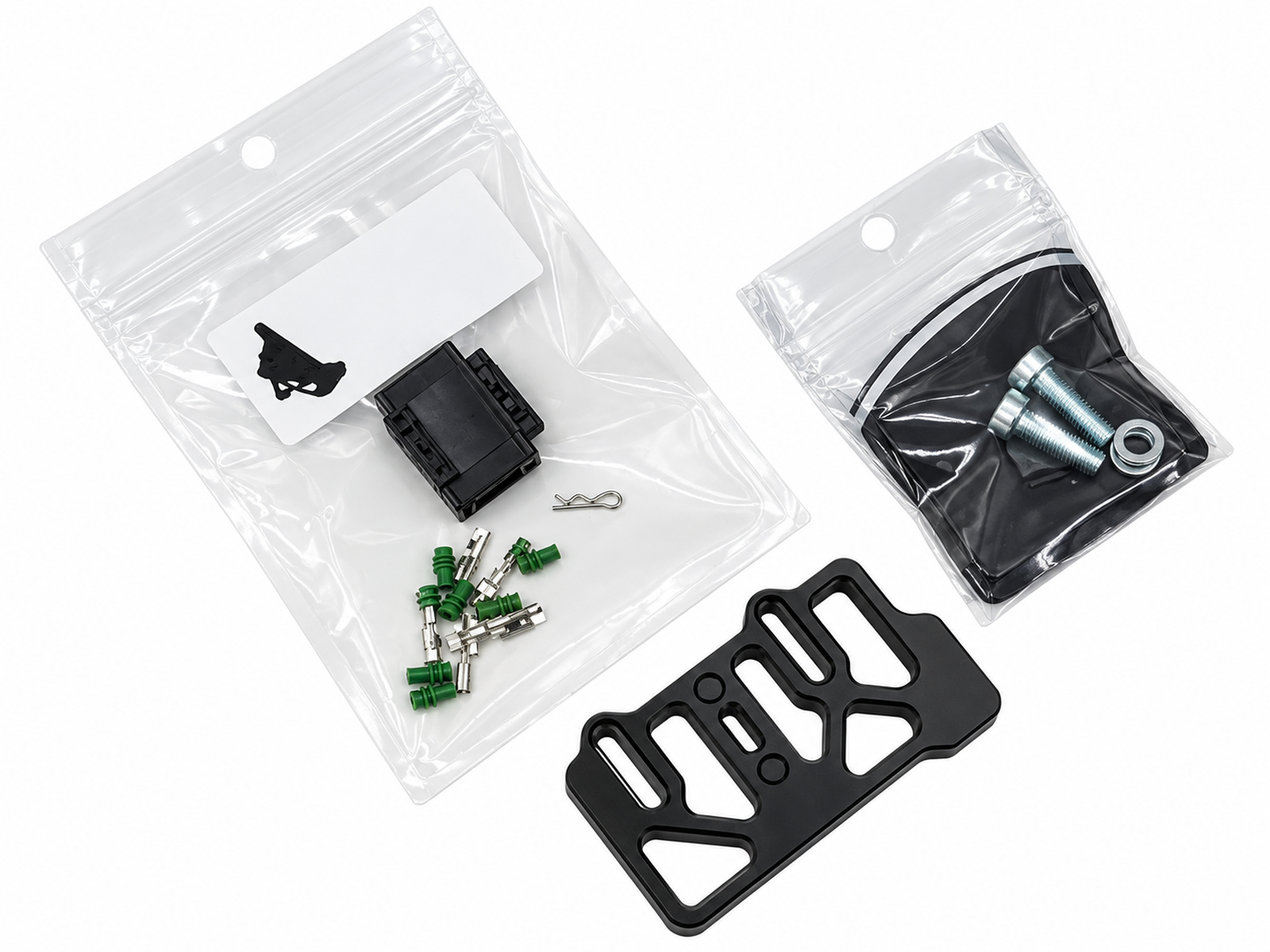

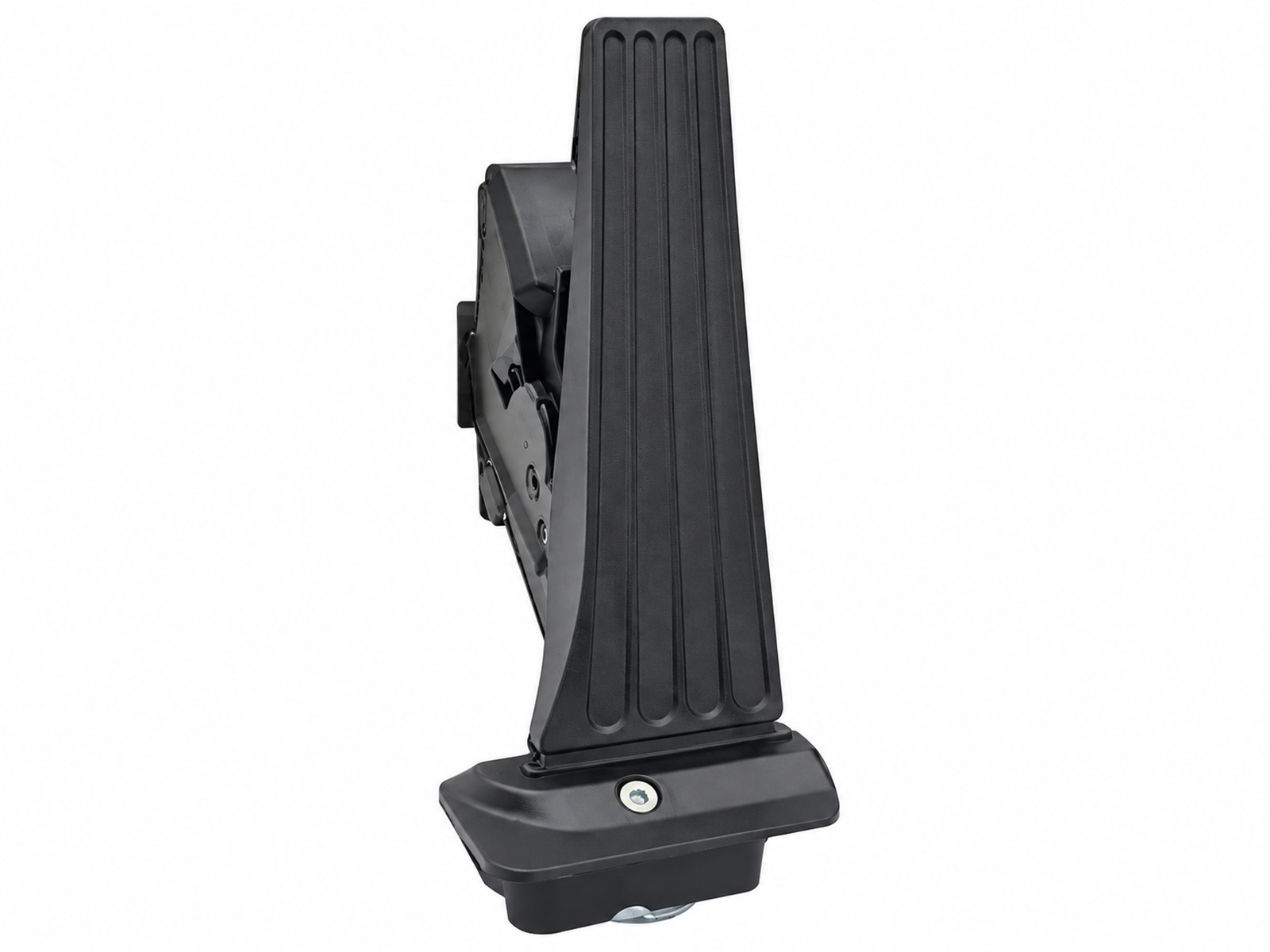

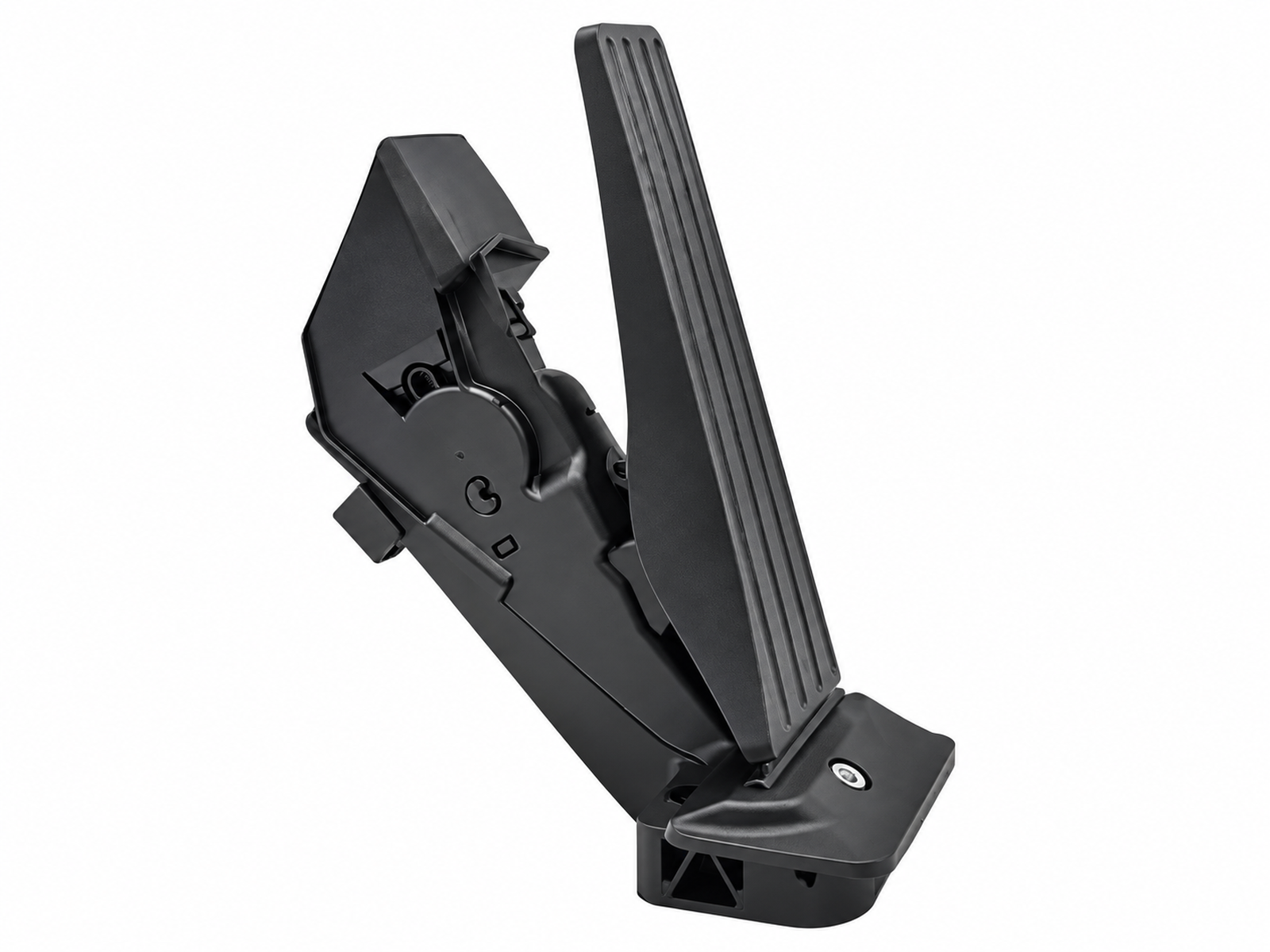

This right-hand-drive electronic throttle pedal assembly by Adapt Motorsport is designed for classic Porsche 911 G Model drive-by-wire conversions. It mounts directly to the factory pedal-box studs and provides adjustable positioning relative to the brake pedal.

Fits:

• Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
• Porsche 911 1978-1983 3.0L / SC
• Porsche 911 1984-1986 3.2L
• Porsche 911 1987-1989 3.2L G50
• Porsche 911 1975-1977 3.0L Turbo (930)
• Porsche 911 1978-1989 3.3L Turbo (930)

What This Product Does

The assembly replaces the conventional accelerator control with an electronic pedal suitable for connection to a compatible ECU-controlled throttle system. Its two-piece mounting arrangement allows the pedal position to be adjusted for the vehicle and driver.

Functions

• Supports the installation of an electronic drive-by-wire throttle system
• Attaches to the original pedal-box studs using a two-bolt mounting arrangement
• Provides lateral adjustment to alter the distance between the accelerator and brake pedals
• Provides longitudinal adjustment relative to the depressed brake pedal
• Allows pedal placement to be configured for heel-and-toe operation
• Accommodates variations in floor level through an adjustable-height foot

Technical Details

• Right-hand-drive version
• ±10 mm lateral pedal adjustment
• ±10 mm longitudinal pedal adjustment
• Two-piece pedal mount manufactured from 3D-printed nylon
• Includes an OEM throttle pedal assembly
• Includes a correctly keyed ECU plug with pins and seals

Installation Notes

The supplied connector is ready to be wired to a compatible ECU, but electrical wiring is not included. The original pedal backplate must be trimmed to accommodate the larger assembly, and the pedal-area carpet may also require alteration. ECU configuration and electrical installation should be completed to suit the chosen engine-management system.

FAQs

• Is the electronic accelerator pedal included?
  Yes. The kit contains an OEM throttle pedal assembly together with the two-piece mounting system.
• Can the pedal position be adjusted?
  Yes. The mounting system permits ±10 mm of lateral movement and ±10 mm of longitudinal adjustment.
• Does the kit include an ECU connector?
  Yes. A correctly keyed plug with the required pins and seals is supplied ready for wiring.
• Is wiring included?
  No. Suitable wiring must be sourced and installed separately for the applicable ECU and throttle system.
• Are modifications required during installation?
  Yes. The pedal backplate requires trimming, and the surrounding carpet may also need to be altered.

Check the drive side, installation layout and compatibility with the intended ECU and electronic throttle system before ordering.

Ignition / Cam Sensor Kit by Adapt Motorsport for Porsche 911 type 964 and 993 applications. The assembly reads a trigger disc on the power-steering side of the engine and is designed for installation while the engine remains in the car.

Fits:

• Porsche 964 (911) C2 1989-93
• Porsche 964 (911) C4 1989-93
• Porsche 964 (911) RS 3.6L 1991-93
• Porsche 964 (911) RS 3.8L 1991-93
• Porsche 993 (911) C2 1994-97
• Porsche 993 (911) C4 1994-97
• Porsche 993 (911) RS 1994-97
• Porsche 993 (911) C2S 1994-97
• Porsche 993 (911) C4S 1994-97

What This Product Does

The kit provides a camshaft trigger arrangement for compatible engine-management installations. Its trigger disc is monitored by the supplied sensor, avoiding the need to drill the camshaft within the engine.

Functions

• Positions the supplied sensor beside the camshaft trigger disc
• Provides a camshaft reference signal arrangement on the power-steering side of the engine
• Supports installations with either retained or removed power steering
• Allows installation without removing the engine

Technical Details

• Two installation versions are offered for different power steering configurations
• CNC-machined sensor holder or cover finished in black anodising
• Trigger disc finished with yellow zinc plating
• Version 1 uses a sensor holder fitted to the power steering cover; the trigger disc replaces the washer beneath the power steering pulley bolt
• Version 1 requires a hole in the original aluminium belt cover plate on the 964 or the plastic belt cover on the 993
• Version 2 uses a camshaft-mounted trigger disc and a sensor cover plate fitted at the original power steering bracket location

Kit Contents

Version 1 includes the sensor holder bracket, sensor and connector kit, trigger disc, fasteners, sealing O-ring and spacers for the 993 cover. Version 2 includes the sensor mounting cover plate, sensor and connector kit, trigger disc and fasteners.

Power steering components such as the pulley, cover plate, bolt and associated fasteners are not included. Version 2 is unsuitable for aftermarket camshafts that do not have the power steering drive extension.

Optional Distributor Plug Kit

For coil-on-plug installations where the distributor has been removed, an optional plug kit closes the remaining opening in the crankcase. The plug is suitable for six-cylinder 911 engines in 2.7L, 3.0L, 3.2L and 3.6L configurations.

FAQs

• Which version is required?
  Choose Version 1 when retaining the original 964 or 993 power steering pump. Choose Version 2 when the pump has been removed and the camshaft still has its power steering drive extension.
• Does the engine need to be removed?
  No. The cam sensor arrangement is designed to be installed with the engine in the car.
• Can Version 2 be used with an aftermarket camshaft?
  Only when the camshaft includes the required power steering drive extension.
• Are power steering parts supplied?
  No. The pulley, power steering cover plate, pulley bolt and related fasteners are not part of the kit.

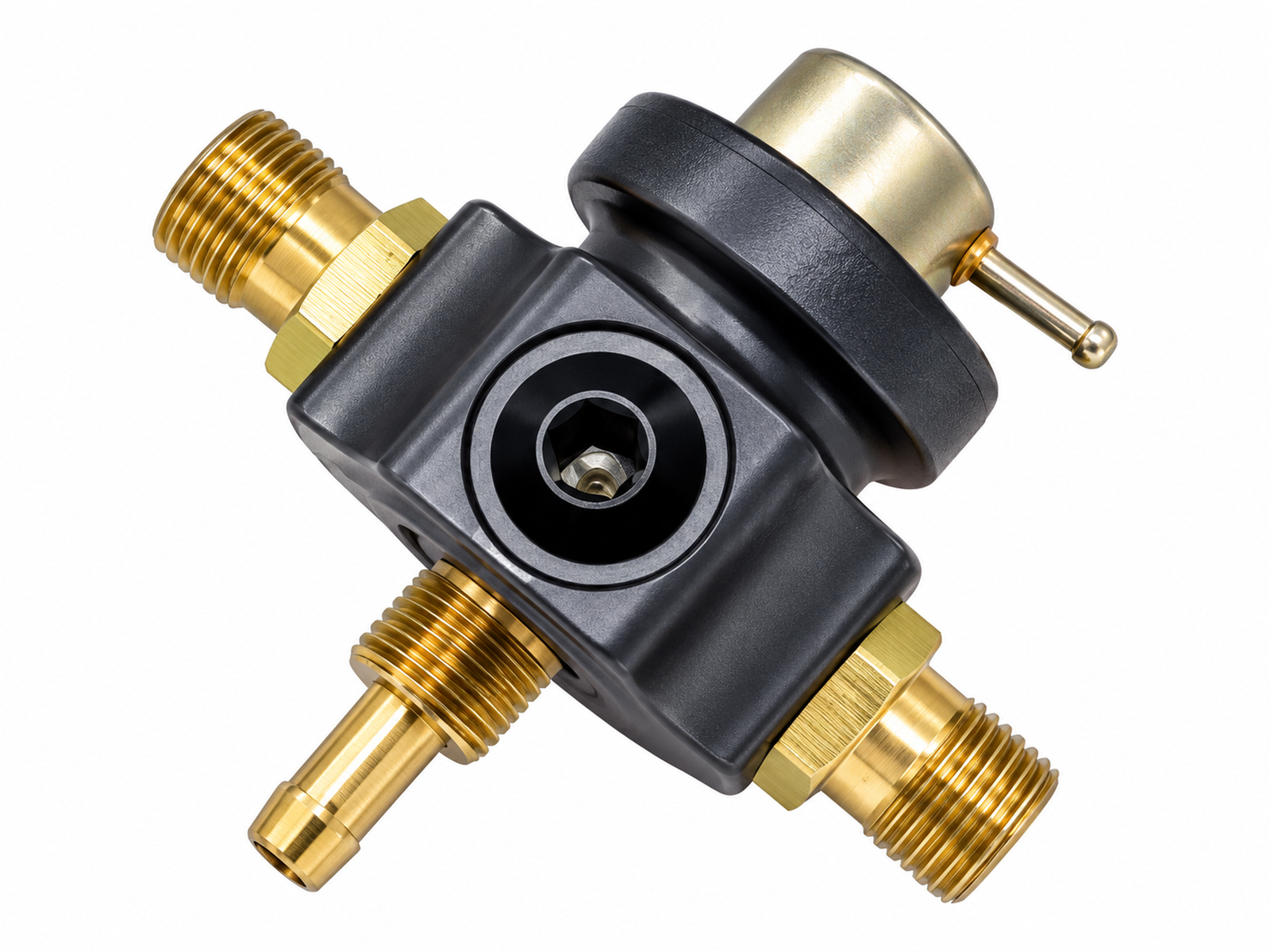

This Adapt Motorsport fixed 3.0 bar fuel pressure regulator kit is a direct-fit solution for the early 1987 Porsche 928 S4. It may also be used as a pressure upgrade for the 1984–89 Porsche 911 Carrera 3.2 and 1980–86 non-CIS 928 when accompanied by suitable engine-management retuning.

Fits:

• Porsche 911 1984-1986 3.2L -  upgrade from 2.5 to 3.0 bar; retuning required
• Porsche 911 1987-1989 3.2L G50 -  upgrade from 2.5 to 3.0 bar; retuning required
• Porsche 928S4 5.0L 1987

What This Product Does

The regulator maintains a fixed 3.0 bar fuel pressure without a connected vacuum reference line. The supplied body and adapters allow the Bosch regulator to connect to the relevant factory fuel rail, supply hose and return line.

Functions

• Controls fuel-system pressure at a fixed 3.0 bar setting
• Connects the Bosch regulator to the original fuel rail and hose ends
• Retains connection to the factory fuel return line
• Provides a replacement for the specified Porsche and Bosch references
• Supports suitably retuned 2.5-to-3.0 bar upgrade applications

Technical Details

• Regulator type: fixed-pressure Bosch unit
• Nominal pressure: 3.0 bar
• Vacuum reference: no vacuum line connected
• Kit contents: one regulator body, one Bosch regulator, two OEM-end adapter fittings, one return-line hose-tail fitting and one ORB plug
• Porsche reference: 92811019802
• Bosch references: 0280160232 and 0280160262

Symptoms of Fault

• Difficult starting when the engine is hot
• Rough, unstable or hunting idle
• Rich running, black exhaust smoke or increased fuel consumption
• Hesitation when applying the throttle
• Misfiring or weak running under load
• Fuel odour or leakage near the regulator
• Fuel pressure that is incorrect, unstable or falls too quickly after shutdown

Why Replacement Matters

An ageing or defective regulator can allow fuel pressure to move outside the intended specification, affecting starting, idle quality and fuelling. This Porsche-specific fitting kit provides the components needed to install a modern fixed-pressure Bosch regulator while retaining the relevant factory hose, rail and return-line connections. On vehicles originally configured for 2.5 bar, the change to 3.0 bar must be matched by appropriate chip or ECU retuning rather than treated as a direct standard-pressure replacement.

FAQs

• Is this a direct replacement for every listed model?
  No. It is specified as a direct 3.0 bar replacement for the early 1987 non-CIS Porsche 928. Earlier 928 and 911 Carrera 3.2 applications require retuning.
• Can it replace Porsche reference 92811019802?
  Yes. This reference is specified for the 3.0 bar application without a connected vacuum line.
• Which Bosch regulators does the kit replace?
  The stated cross-references are Bosch 0280160232 and 0280160262.
• Is the regulator adjustable?
  No. The included Bosch regulator has a fixed 3.0 bar pressure specification.
• Does the kit connect to the factory return line?
  Yes. A hose-tail fitting for the original return line is included.
• Is specialist installation recommended?
  Professional installation and calibration are advisable, particularly when converting a vehicle from 2.5 to 3.0 bar fuel pressure.

Adjustable direct-mount fuel pressure regulator by Adapt Motorsport. It attaches to the factory fuel rail and provides a 2.0–5.0 bar adjustment range with an M14 threaded return outlet.

Fits

• Porsche 944 naturally aspirated 1988 with M44.02 or M44.04 engine, replacing 94411019805 when set to 2.5 bar
• Porsche 944 Turbo 1988–92 with M44.52 engine, replacing 94411019805 when set to 2.5 bar
• Porsche 944 naturally aspirated 1988–89, 944 S2 1989–92 and 968 1992–94 with M44.11, M44.12, M44.41 or M44.43/44 engines, replacing 944 110 198 06 when set to 3.8 bar

This regulator is intended only for installations using the threaded lower return connection. It is not suitable for vehicles fitted with the 5/16" hose-barb connection at the bottom of the regulator.

Check fitment for your specific vehicle (model, year, engine) before ordering. Previous repairs may have introduced a different regulator or hose arrangement, so compare the installed connection with this M14 version.

What This Product Does

The regulator controls fuel pressure within the injection system. Its adjustable mechanism allows pressure to be configured for the relevant standard application or for a compatible tuned installation requiring a different setting.

Functions

• Attaches directly to the original fuel rail through an O-ring connection
• Provides adjustable pressure between 2.0 and 5.0 bar
• Connects to the fuel return line through an M14 threaded fitting
• Permits pressure adjustment for compatible Porsche 944 Turbo tuning configurations
• Replaces specified Porsche and Bosch fixed-pressure regulators

Technical Details

• Pressure adjustment range: 2.0–5.0 bar
• Fuel return connection: M14 threaded outlet fitting
• Fuel-rail connection: direct O-ring mounting
• Kit includes the regulator body, adjustable regulator, M14 outlet fitting, cap screws and lock washers
• Tested by Adapt Motorsport with Bosch 044 fuel pumps; the maximum supported flow rate has not been established
• Supplied without a preset pressure setting

Symptoms of Fault

• Fuel leaking from the original regulator
• Engine running problems associated with incorrect or unstable fuel pressure
• Difficulty obtaining the required pressure during tuning or diagnosis

Why Replacement Matters

Many original regulators are now affected by age-related leakage or failure. This adjustable unit renews the pressure-control component while retaining direct fitment to the applicable factory rail. After installation, pressure must be measured and set on the vehicle to the specification required by its engine and fuel system.

OE Reference

• Porsche 944 110 198 05
• Porsche 944 110 198 06
• Bosch 0 280 160 286
• Bosch 0 280 160 287

FAQs

• Is the regulator supplied pre-set?
  No. It must be adjusted after installation using an appropriate fuel-pressure gauge and fittings for the factory rail.
• Can it be used with a Bosch 044 fuel pump?
  Adapt Motorsport has tested it with Bosch 044 pumps, but the upper flow limit has not been determined.
• Will it fit a hose-barb return connection?
  No. This version uses an M14 threaded outlet and is not suitable for the regulator arrangement with a 5/16" lower barb.
• Should the installed regulator be checked before ordering?
  Yes. Earlier repairs may have changed the regulator, hoses or connection type from the original vehicle specification.

Adjustable direct-mount fuel pressure regulator by Adapt Motorsport. It fits the factory fuel rail and provides a 2.0–5.0 bar adjustment range for application-specific pressure settings.

Fits

• Porsche 944 naturally aspirated 1982–85 with M44.02 or M44.04 engines, replacing 94411019801 when adjusted to 2.5 bar
• Porsche 944 naturally aspirated 1985/2–88 with M44.05–10 engines, replacing 94411019803 when adjusted to 2.5 bar
• Porsche 944 Turbo 1986–89 with M44.51, or M44.52 up to engine number 47K 02563, replacing 94411019803 when adjusted to 2.5 bar
• Porsche 924S 1986–88, replacing 94411019803 when adjusted to 2.5 bar
• Porsche 944 naturally aspirated 1988 with M44.40 engine, replacing 94411019804 when adjusted to 3.8 bar
• Porsche 944S with M44.11 up to engine number 46K 02979, or M44.12 up to engine number 46K 61255, 1987–88, replacing 94411019804 when adjusted to 3.8 bar
• Porsche 944 S2 applications, subject to verification of the regulator and hose arrangement already installed

Not directly suitable for the 944 Turbo M44.52 from engine number 47K 02564 onwards when fitted with the threaded lower connection used by regulators 944 110 198 05, 944 110 198 06, Bosch 0 280 160 286 or Bosch 0 280 160 287. Installation requires conversion of the threaded return line to a plain hose and suitable hose clip.

Check fitment for your specific vehicle (model, year, engine) before ordering. Regulators and hoses may have been changed during earlier repairs, so compare the connection type with the component currently fitted.

What This Product Does

The regulator controls fuel pressure within the injection system. Its adjustable design allows the required operating pressure to be set for the applicable factory system or a compatible tuned installation.

Functions

• Mounts directly to the factory fuel rail using an O-ring connection
• Provides adjustable fuel pressure from 2.0 to 5.0 bar
• Connects to the return hose through an 8 mm barb outlet
• Allows increased fuel pressure where required by a compatible 944 Turbo tuning chip
• Supports straightforward replacement of specified Bosch and Porsche regulators

Technical Details

• Adjustment range: 2.0–5.0 bar
• Fuel return connection: 8 mm hose barb
• Fuel-rail connection: direct O-ring fitting
• Supplied with regulator body, adjustable regulator, outlet fitting, cap screws and lock washers
• Tested by Adapt Motorsport with Bosch 044 fuel pumps; the maximum supported flow rate has not been established
• The regulator is not supplied pre-set and must be adjusted on the vehicle using a suitable fuel-pressure gauge and fuel-rail adaptor

Symptoms of Fault

• Fuel leakage around the original regulator
• Running problems caused by regulator failure
• Difficulty obtaining the required fuel pressure during engine tuning

Why Replacement Matters

Many original regulators fitted to these models are now several decades old and may leak or cease to regulate correctly. Replacement restores an adjustable pressure-control point while retaining a direct connection to the applicable factory fuel rail. Final pressure must be measured and set after installation to match the vehicle and engine specification.

OE Reference

• Porsche 944 110 198 01
• Porsche 944 110 198 03
• Porsche 944 110 198 04
• Bosch 0 280 160 214
• Bosch 0 280 160 227
• Bosch 0 280 160 263

FAQs

• Is the regulator supplied at the correct pressure?
  No. It must be measured and adjusted on the vehicle after installation.
• What equipment is needed for setup?
  A suitable fuel-pressure gauge and fittings for connection to the factory fuel rail are required.
• Can it be used with a Bosch 044 fuel pump?
  Adapt Motorsport has tested the regulator with Bosch 044 pumps, although the upper fuel-flow limit has not been determined.
• Will it replace every 944 Turbo regulator?
  No. Later M44.52 installations with a threaded lower regulator port require modification of the return-line connection.

GT3 manifold electronic throttle conversion kit by Adapt Motorsport for naturally turbocharged, air-cooled Porsche 911 engines. Configurations are offered for three-bolt 964 turbo and 993 turbo applications.

Fits

• Porsche 964 (911) TURBO 3.3L 1991-93
• Porsche 964 (911) TURBO 3.6L 1991-93
• Porsche 993 (911) TURBO S 1994-97

What This Product Does

This conversion package uses large-volume 996 GT3-style intake hardware as the basis of an electronic throttle system for classic Porsche flat-six turbocharged engines. It combines the throttle body, fuel rails, intake adapters, resonance-flap hardware, pressure and temperature sensing, vacuum controls and associated fittings required to assemble the intake system.

Functions

• Controls intake airflow through a Bosch electronic throttle body
• Adapts GT3-style intake hardware to compatible air-cooled Porsche cylinder heads
• Supports long, medium or short EV14-style fuel injectors through configurable fuel-rail spacers
• Operates the resonance flap using a vacuum canister, solenoid and check valve
• Provides connections for brake-booster vacuum, idle-air bypass and other vacuum requirements
• Measures manifold pressure and intake-air temperature through a Bosch T-MAP sensor

Technical Details

• Based around 996 GT3-style intake manifolds with 49mm ports; the manufacturer lists 43mm for a standard 964 manifold and 39mm for a 3.2 manifold
• Bosch 82mm electronic throttle body supplied with connector kit
• Bosch 1.15-bar T-MAP sensor supplied as standard; a 3.0-bar version is offered as an option
• Three-bolt adapters are available with 42mm or 44mm ports for 964 and 993 turbo engines
• Adapt Motorsport manifolds are cast aluminium, while the resonance flap and intake T-piece are CNC-machined and black anodised

Base Kit Contents

• Adapt Motorsport high-flow intake T-piece with vacuum and T-MAP sensor ports
• Fuel-rail kit with fittings
• Bosch 82mm electronic throttle body and connector kit
• CNC-machined resonance-flap assembly with sealed roller bearings
• Bosch temperature and pressure sensor with connector kit
• Throttle, resonance-flap and intake-adapter sleeves with hose clamps
• Vacuum canister, solenoid, check valve, connector and hoses
• Required fasteners and fittings

Configuration Information

Versions are available with or without a pair of Adapt Motorsport GT3 intake manifolds. Select the correct cylinder-head bolt pattern, adapter port diameter and manifold configuration for the engine. The optional cast-aluminium manifolds are designed around the shorter cylinder spacing of air-cooled Porsche 911 engines and include vacuum ports and discreet mounting points for wiring and control components.

FAQs

• Is the electronic throttle body included? Yes. Every base kit includes a Bosch 82mm electronic throttle body and its connector kit.
• Are GT3 intake manifolds supplied? This depends on the chosen configuration. Versions are available both with and without a pair of Adapt Motorsport manifolds.
• Which injector lengths are supported? The configurable fuel-rail spacers accommodate long, medium and short EV14-style injectors.
• Which cylinder-head patterns are covered? Two-bolt configurations suit 2.7, 3.0 and 3.2 engines, while three-bolt configurations are intended for 964 and 993 3.6 engines.

Check fitment for your specific vehicle, engine, cylinder-head pattern and required port diameter before ordering.

GT3 manifold electronic throttle conversion kit by Adapt Motorsport for air-cooled Porsche 911 turbo installations with two-bolt cylinder heads.

Fits

• Porsche 911 1975-1977 3.0L Turbo (930)
• Porsche 911 1978-1989 3.3L Turbo (930)

What This Product Does

This conversion uses large-volume 996 GT3-style intake manifolds as the basis of an electronic throttle intake system for classic air-cooled Porsche engines. Adapt Motorsport offers purpose-designed cast-aluminium manifolds that account for the shorter cylinder spacing of these engines, together with the fuel delivery, vacuum and resonance-flap components required to form the intake assembly.

Functions

• Controls intake airflow through a Bosch 82mm electronic throttle body
• Adapts GT3-style intake hardware to compatible two-bolt turbo cylinder heads
• Provides fuel rails and spacers for long, medium or short EV14-style injectors
• Operates the resonance flap through a vacuum canister, solenoid and check valve
• Provides vacuum connections for the brake booster, idle-air bypass and other systems
• Measures intake temperature and manifold pressure using a Bosch T-MAP sensor

Technical Details

• 996 GT3-style intake manifold port diameter: 49mm
• Two-bolt intake adapters: 40mm or 42mm ports for 3.0ltr and 3.3ltr turbo engines
• Bosch electronic throttle body diameter: 82mm
• Standard Bosch T-MAP sensor: 1.15 bar; a 3.0-bar option is also offered
• Adapt Motorsport manifolds are cast aluminium; the resonance flap and intake T-piece are CNC-machined and black anodised

Base Kit Contents

• Adapt Motorsport high-flow intake T-piece with vacuum and T-MAP sensor ports
• Fuel rail kit with fittings
• Bosch 82mm electronic throttle body and connector kit
• CNC-machined resonance-flap kit with sealed roller bearings
• Bosch 1.15-bar temperature and pressure sensor with connector kit
• Throttle, resonance-flap and intake-adapter sleeves with hose clamps
• Vacuum canister, solenoid, check valve, connector and hoses
• Required fasteners and fittings

Configuration Information

Versions are offered for two-bolt and three-bolt cylinder heads, with the corresponding adapter port sizes. Configurations may include or exclude a pair of Adapt Motorsport GT3 intake manifolds. Confirm the cylinder-head pattern, required port diameter and manifold requirement when selecting the kit.

FAQs

• Is the electronic throttle body included?
  Yes. The base kit includes a Bosch 82mm electronic throttle body and connector kit.
• Are intake manifolds included?
  This depends on the selected configuration. Versions are offered both with and without a pair of Adapt Motorsport GT3 intake manifolds.
• Which injector lengths are supported?
  The supplied fuel-rail spacers can be configured for long, medium or short EV14-style injectors.
• Which cylinder-head patterns are available?
  Two-bolt versions support 2.7L, 3.0L and 3.2L applications, while three-bolt versions are intended for 964 and 993 3.6L engines.

This naturally aspirated GT3 manifold electronic throttle conversion kit by Adapt Motorsport is designed for classic Porsche 911 engines with two-bolt cylinder heads.

Fits

• Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
• Porsche 911 1978-1983 3.0L / SC
• Porsche 911 1984-1986 3.2L
• Porsche 911 1987-1989 3.2L G50

What This Product Does

The kit adapts large-volume 996 GT3-style intake manifolds and Bosch electronic throttle control to compatible air-cooled Porsche 911 engine builds. Adapt Motorsport intake components account for the shorter cylinder spacing of air-cooled engines and provide the fuel-rail, resonance-flap and vacuum-control hardware needed to complete the intake assembly.

Functions

• Regulates intake airflow through an 82mm Bosch electronic throttle body
• Connects GT3-style intake hardware to two-bolt air-cooled cylinder heads
• Supports short, medium or long EV14-style fuel injectors using the appropriate rail spacers
• Controls the intake resonance flap through a vacuum canister, solenoid and check valve
• Provides vacuum connections for the brake booster, idle-air bypass and supporting systems
• Measures manifold pressure and intake temperature through a Bosch T-MAP sensor

Technical Details

• 996 GT3-style intake manifold port diameter: 49mm
• Two-bolt adapters: 40mm or 42mm ports for 2.7, 3.0 and 3.2 engines
• Bosch electronic throttle body diameter: 82mm
• Standard Bosch T-MAP sensor rating: 1.15 bar; a 3.0-bar version is offered separately
• AMS manifolds use cast-aluminium construction, while the resonance flap and intake T-piece are CNC-machined and black anodised

Base Kit Contents

• AMS high-flow intake T-piece with vacuum and T-MAP sensor connections
• AMS fuel rails with fittings
• Bosch 82mm electronic throttle body and connector kit
• AMS CNC-machined resonance-flap assembly with sealed roller bearings
• Bosch 1.15-bar temperature and pressure sensor with connector
• Throttle, resonance-flap and intake-adapter sleeves with hose clamps
• Vacuum canister, solenoid, check valve, electrical connector and hoses
• Required fasteners and fittings

Configuration Information

Separate versions accommodate two-bolt and three-bolt cylinder heads, with the relevant adapter port sizes. Each configuration can be supplied either with or without a pair of AMS GT3 intake manifolds, so the cylinder-head pattern, port diameter and manifold requirement must be confirmed before selection.

FAQs

• Is the electronic throttle body included?
  Yes. Every base kit contains the Bosch 82mm electronic throttle body and its connector kit.
• Are intake manifolds supplied?
  This depends on the chosen configuration. Adapt Motorsport offers versions both including and excluding the pair of AMS GT3 intake manifolds.
• Does the system require calibration?
  Yes. The electronic throttle, T-MAP sensor, injectors and resonance-flap controls must be configured within a compatible engine-management system.
• Which cylinder-head patterns are supported?
  Two-bolt versions suit 2.7, 3.0 and 3.2 engines, while three-bolt versions are intended for 964 and 993 3.6-litre applications.

Adapt Motorsport GT3 manifold electronic throttle conversion kit for naturally aspirated classic Porsche 911 applications 964 and 993 engines. It combines a Bosch 82mm drive-by-wire throttle body with AMS fuel-rail, resonance-flap and vacuum-control hardware.

Fits:

• Porsche 964 (911) C2 1989-93
• Porsche 964 (911) C4 1989-93
• Porsche 964 (911) RS 3.6L 1991-93
• Porsche 964 (911) RS 3.8L 1991-93
• Porsche 993 (911) C2 1994-97
• Porsche 993 (911) C4 1994-97
• Porsche 993 (911) RS 1994-97
• Porsche 993 (911) C2S 1994-97
• Porsche 993 (911) C4S 1994-97

What This Product Does

The conversion is based around large-volume Porsche 996 GT3 intake manifolds and introduces electronic throttle control to compatible air-cooled 911 engine builds. Specially designed adapters accommodate the shorter cylinder spacing of the air-cooled engine, while the integrated resonance-flap and vacuum-control components support a complete intake installation.

Functions

• Controls engine airflow through a Bosch 82mm electronic throttle body
• Adapts 996 GT3-style intake hardware to compatible air-cooled Porsche engines
• Provides fuel-rail mounting for short, medium or long EV14-style injectors
• Operates the resonance flap using the supplied vacuum components
• Provides connections for brake-booster vacuum, idle-air bypass and other vacuum requirements
• Accommodates a Bosch temperature and manifold-pressure sensor

Technical Details

• GT3 intake manifold port diameter: 49mm; the manufacturer compares this with 43mm for a standard 964 manifold
• Three-bolt adapters are offered with 42mm or 44mm ports for 964 and 993 3.6ltr engines
• AMS intake manifolds are cast in aluminium and developed using Computational Fluid Dynamics modelling
• The AMS intake T-piece and resonance-flap components are CNC-machined with a black anodised finish
• Supplied Bosch T-MAP sensor is rated at 1.15 bar, with a 3.0-bar version listed as an option

Base Kit Contents

• AMS high-flow intake T-piece with vacuum and Bosch T-MAP sensor ports
• AMS fuel-rail kit with fittings
• Bosch 82mm electronic throttle body and connector kit
• AMS CNC-machined resonance-flap kit with sealed roller bearings
• Bosch 1.15-bar temperature and pressure sensor with connector
• Throttle, resonance-flap and intake-adapter rubber sleeves with hose clamps
• Vacuum canister, solenoid, check valve, connector kit and hoses
• Required fasteners and fittings

Configuration Information

Separate configurations are offered for two-bolt and three-bolt cylinder heads, with versions designed either to include or exclude the pair of AMS GT3 intake manifolds. Confirm the required cylinder-head pattern, adapter port diameter and manifold configuration before selection.

FAQs

• Does every kit include the electronic throttle body?
  Yes. The common base specification includes the Bosch 82mm electronic throttle body and its connector kit.
• Are GT3 intake manifolds included?
  This depends on the selected configuration. The manufacturer lists separate versions with and without the pair of AMS GT3 manifolds.
• Does the installation require calibration?
  The electronic throttle, T-MAP sensor, injectors and resonance-flap control must be correctly configured within the vehicle's compatible engine-management system.
